Manufacturer – SVB Bearings private limited
| Specification | |
|---|---|
| Material | As per Requirement |
| Inner Diameter | 3mm to 300mm |
| Outer Diameter | 3mm to 300mm |
| Length | 3mm to 300mm |
| Shape | Cylindrical |
| Lubrication | As per Requirement |
| Brand | SVB |
| Minimum Order Quantity | 1 |
| Delivery Time | Depends on Quantity |

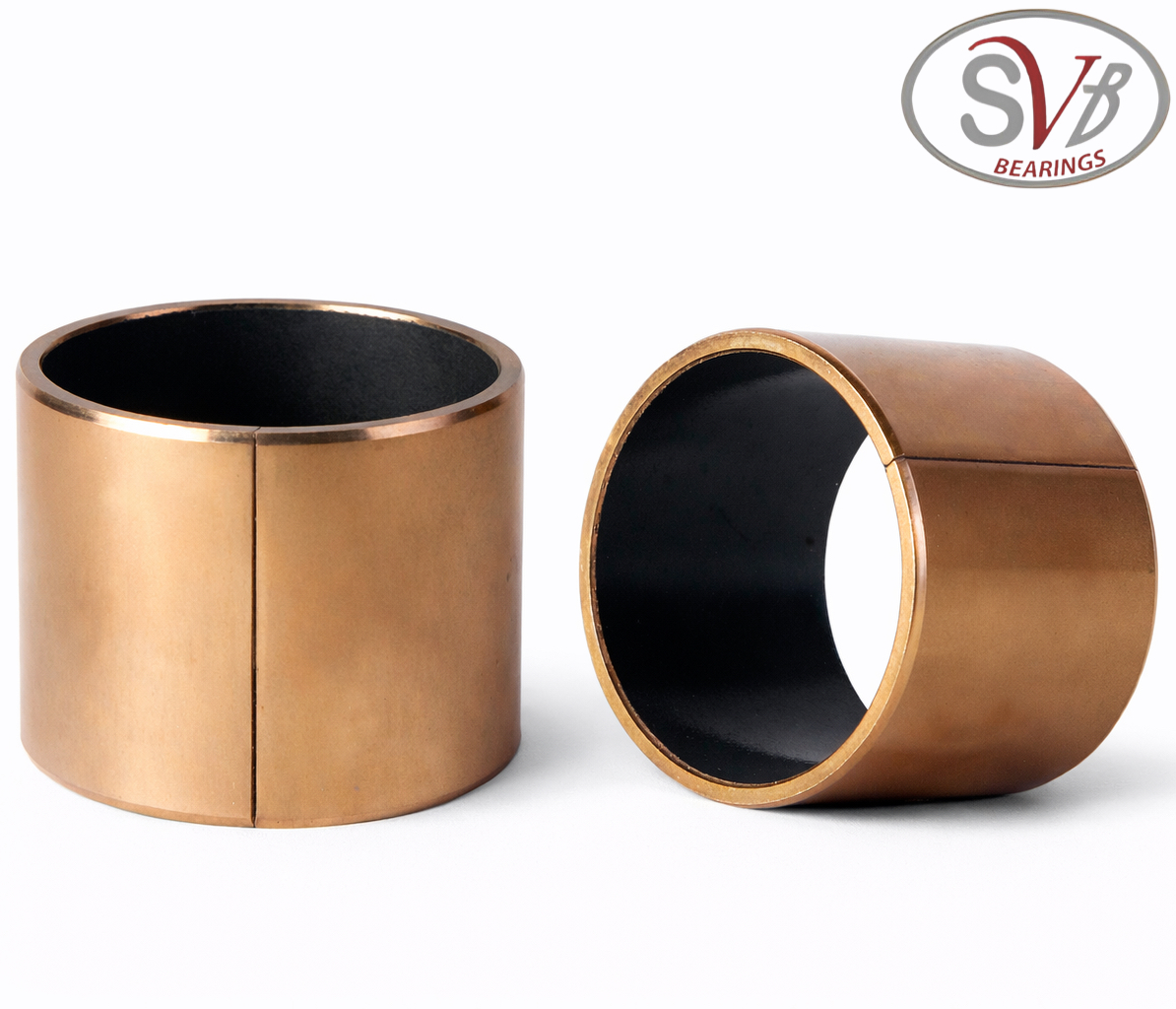

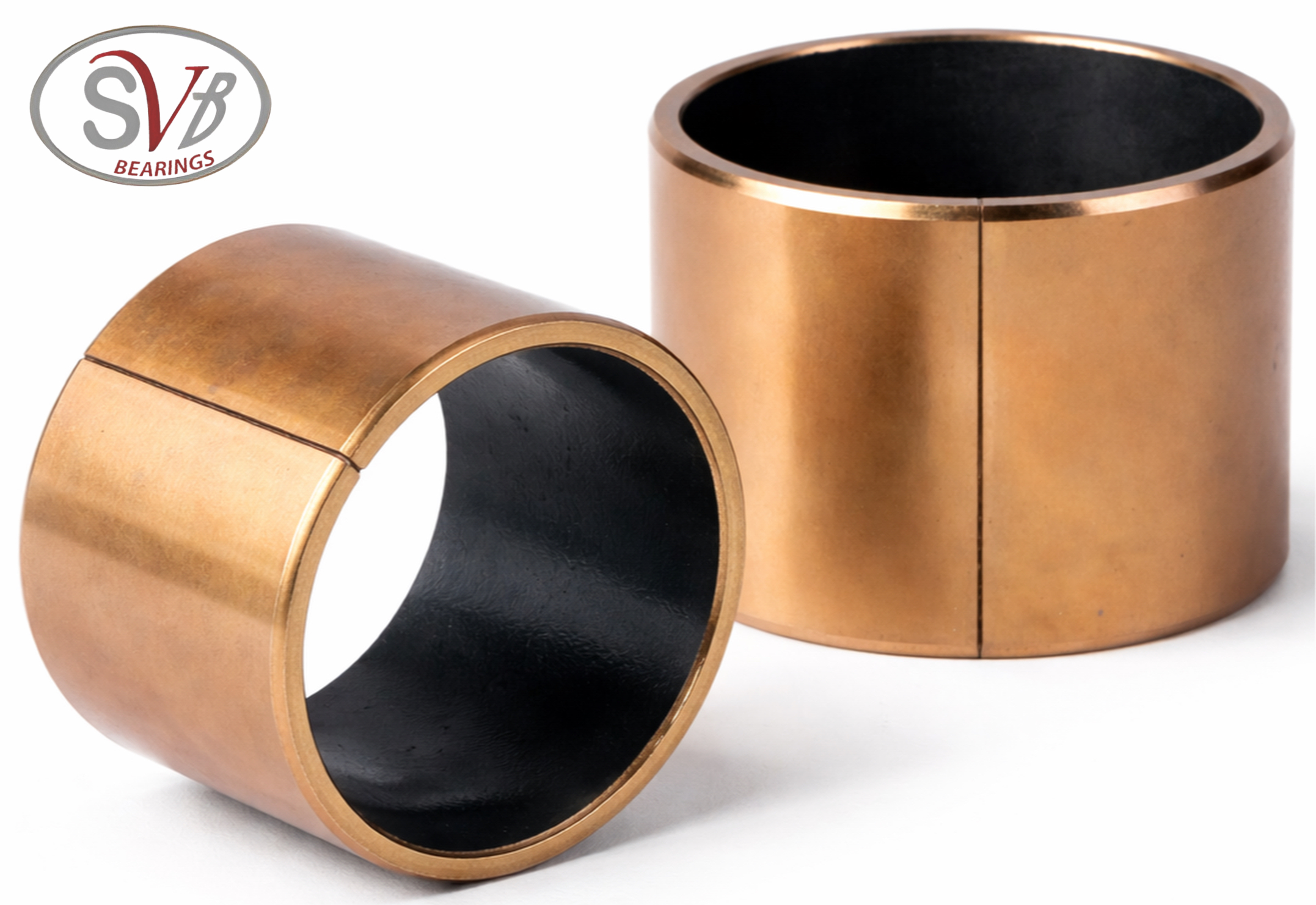

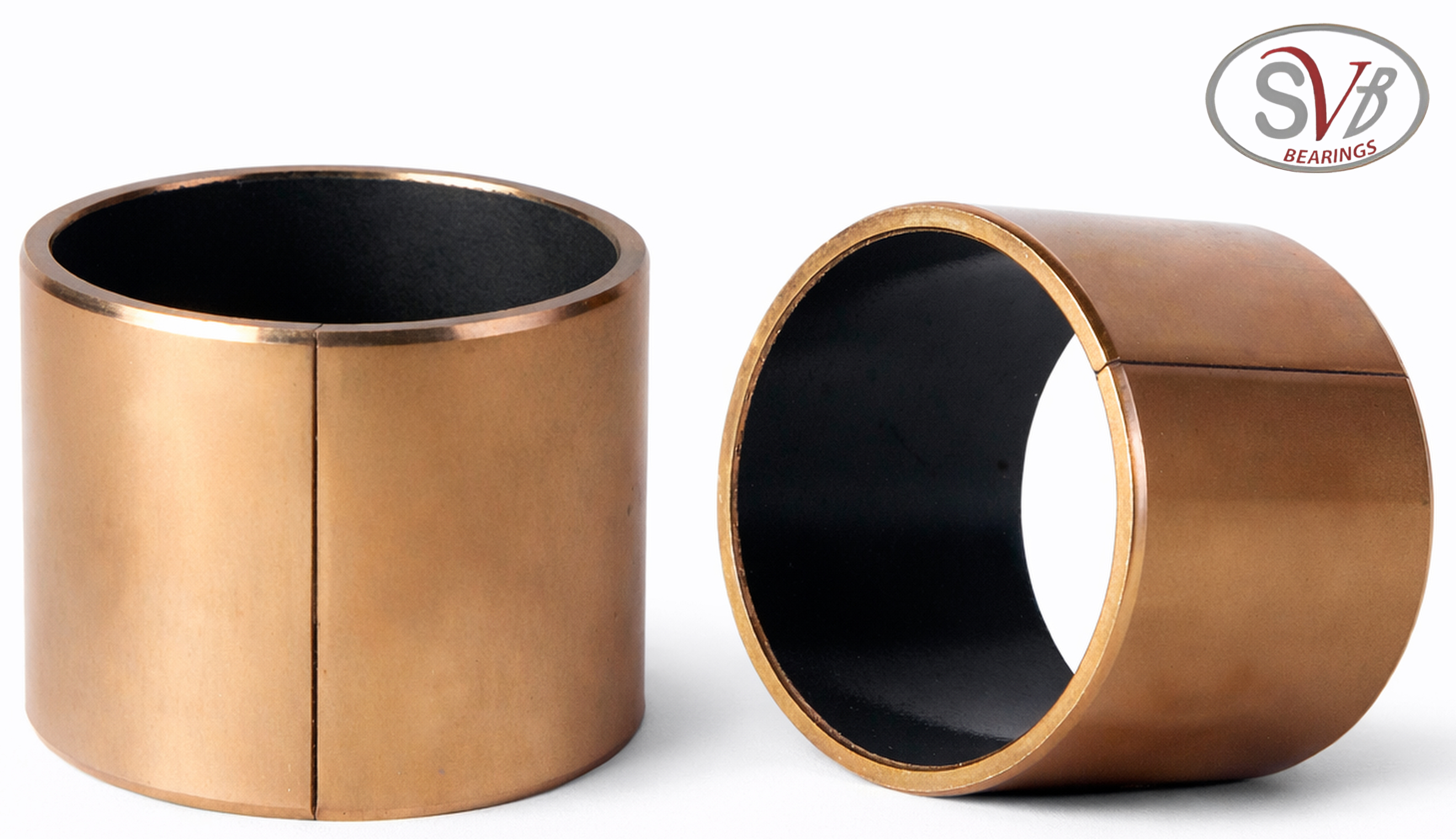

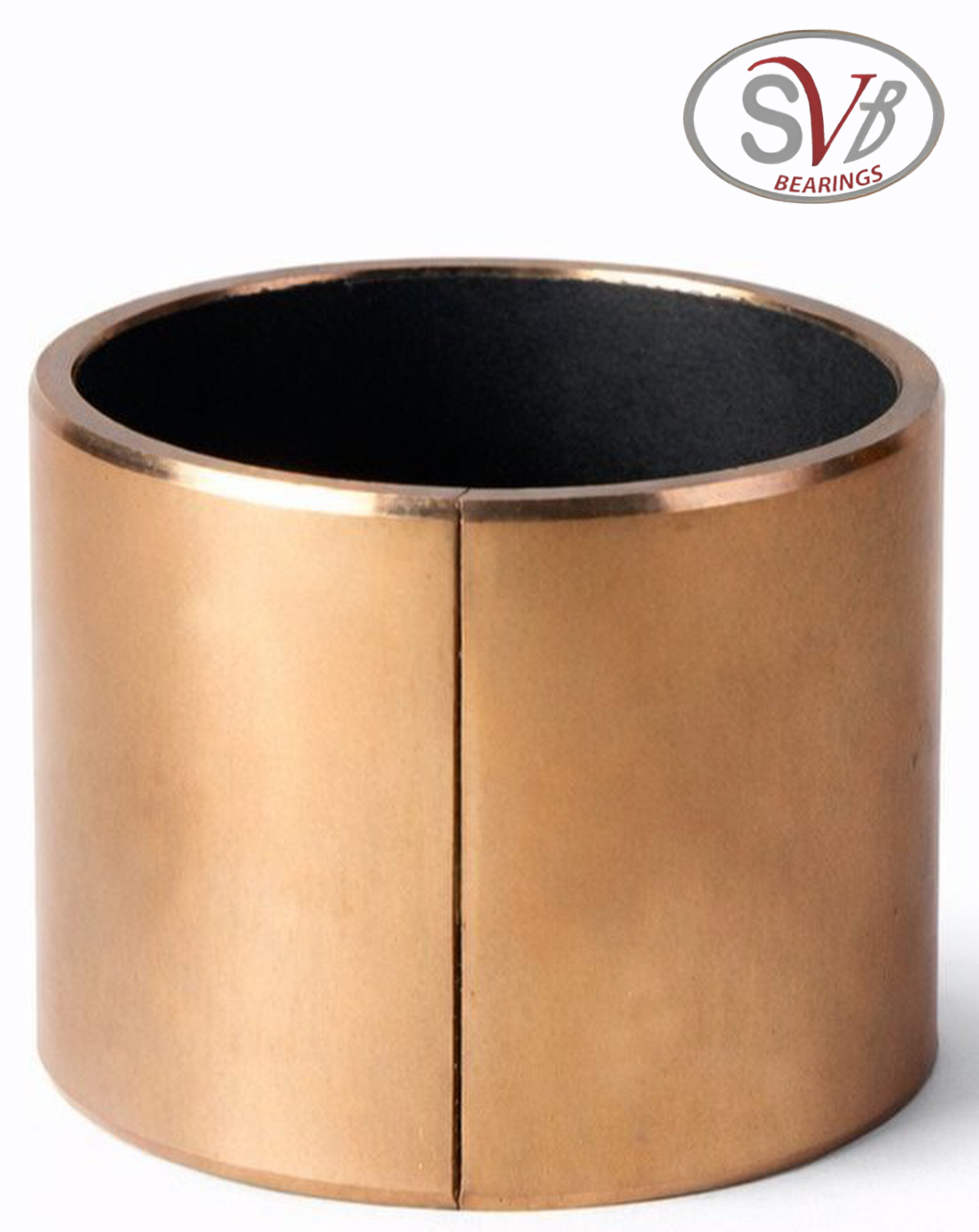

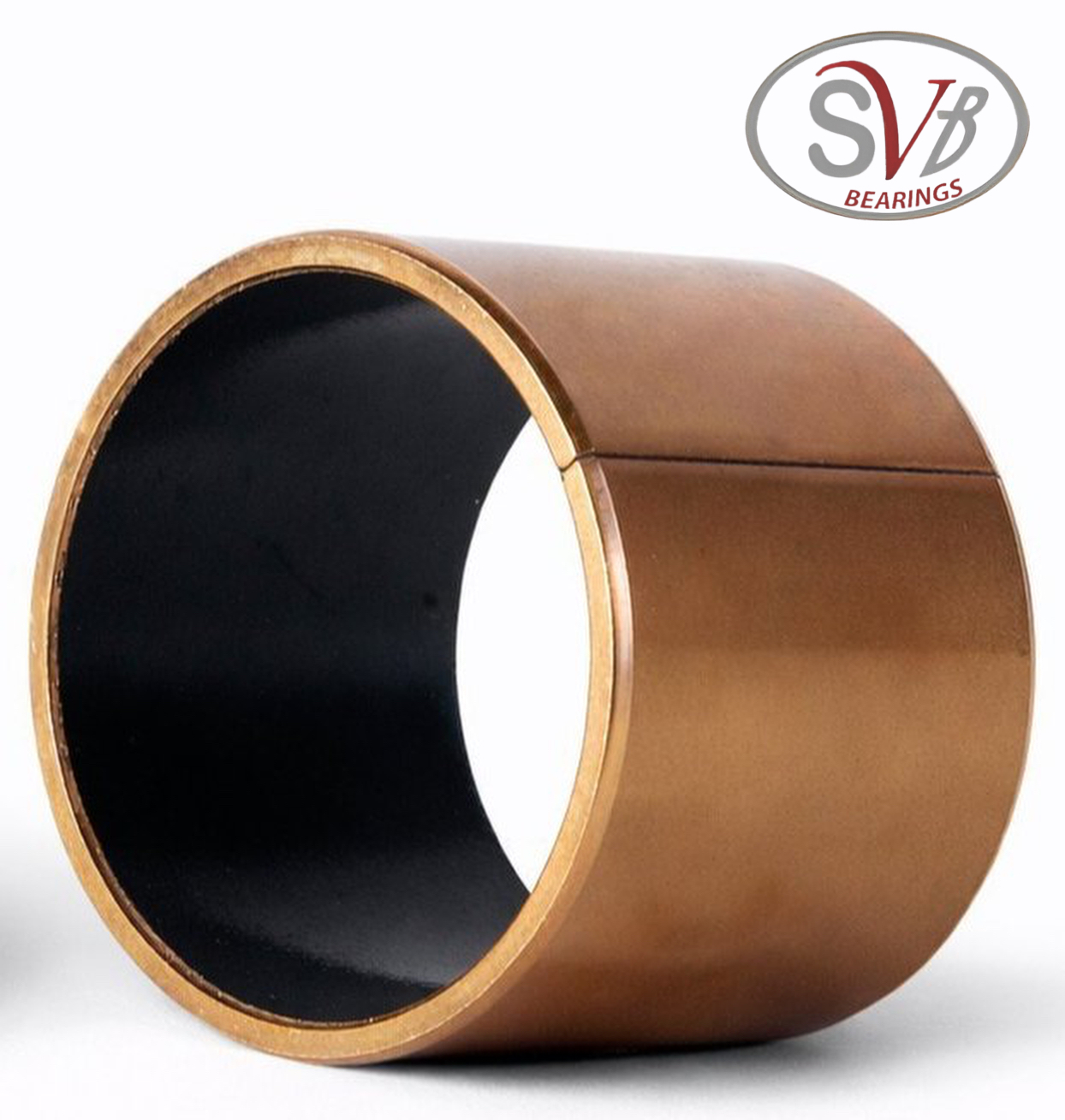

Self Lubricating Bronze Bushes are high-performance bearing components designed to provide smooth, low-friction, and maintenance-free operation in a wide range of industrial applications. Manufactured using premium-grade bronze combined with advanced self-lubricating technology, these bushes ensure consistent performance without the need for external lubrication.
These bushes are designed to reduce friction and minimize wear between moving parts, improving efficiency and extending service life. Their robust construction allows them to perform reliably under varying loads, speeds, and operating conditions, making them suitable for both light and heavy-duty applications.
Engineered for durability and precision, self-lubricating bronze bushes are ideal for applications where regular lubrication is difficult or where maintenance needs to be minimized.
We offer precision-engineered bronze bushes that meet international standards for quality and performance. Our products are designed to deliver reliable operation, reduced wear, and long service life. With strict quality control and customization options, we provide cost-effective solutions tailored to your industrial requirements.
Q1. What is a self-lubricating bronze bush?
It is a bronze bush designed to operate without external lubrication, reducing friction and wear.
Q2. Where are these bushes used?
They are widely used in industrial machinery, automotive systems, and applications requiring low maintenance.
Q3. What are the benefits of self-lubricating bronze bushes?
They reduce friction, eliminate lubrication needs, and improve service life.
Q4. Do you offer customized sizes?
Yes, we provide bushes in various sizes and specifications as per customer requirements.
| Technical Data | ||
|---|---|---|
| Performance Index | Data | |
| Max Load Capacity | Static load | 140N/mm² |
| Dynamic load | 75N/mm² | |
| Max Sliding Speed | Dry friction | 2.0m/s |
| Oil lubrication | 4.0m/s | |
| Max PV Value Limit | Dry friction | 2.8N/mm² · m/s |
| Oil lubrication | 5.5N/mm² · m/s | |
| Friction Coefficient | Dry friction | 0.06~0.18 |
| Oil lubrication | 0.03~0.10 | |
| Working Temperature | -50℃~+250℃ | |
| Thermal Conductivity | 60W/m · k | |
| Coefficient of Thermal Expansion | 17X10⁻⁶/K | |
