Sintered Bronze Bush

📱 WhatsApp Enquiry
Specification
Material As per Requirement
Inner Diameter 3mm to 300mm
Outer Diameter 3mm to 300mm
Length 3mm to 300mm
Shape Cylindrical
Lubrication As per Requirement
Brand SVB
Minimum Order Quantity 1
Delivery Time Depends on Quantity

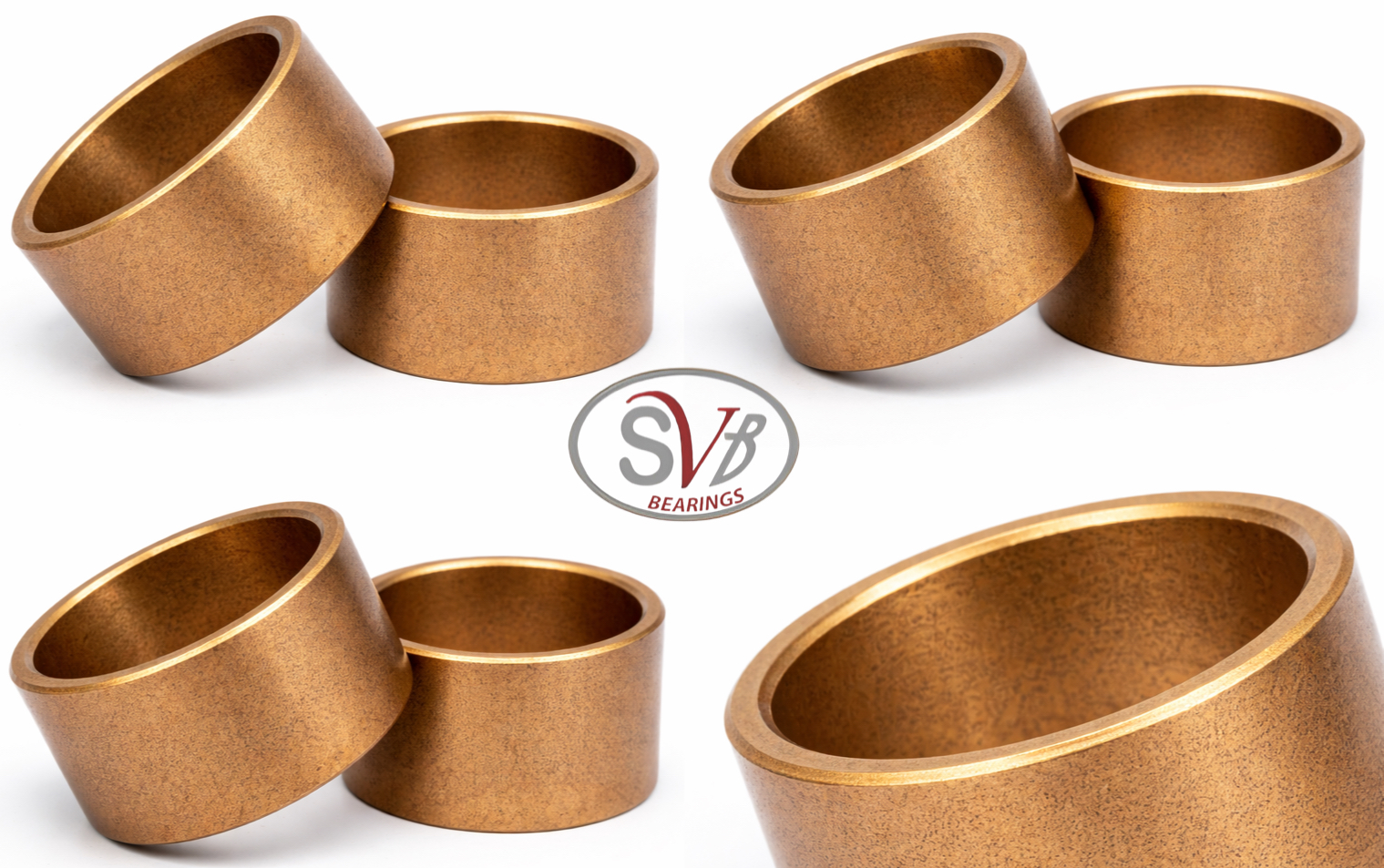

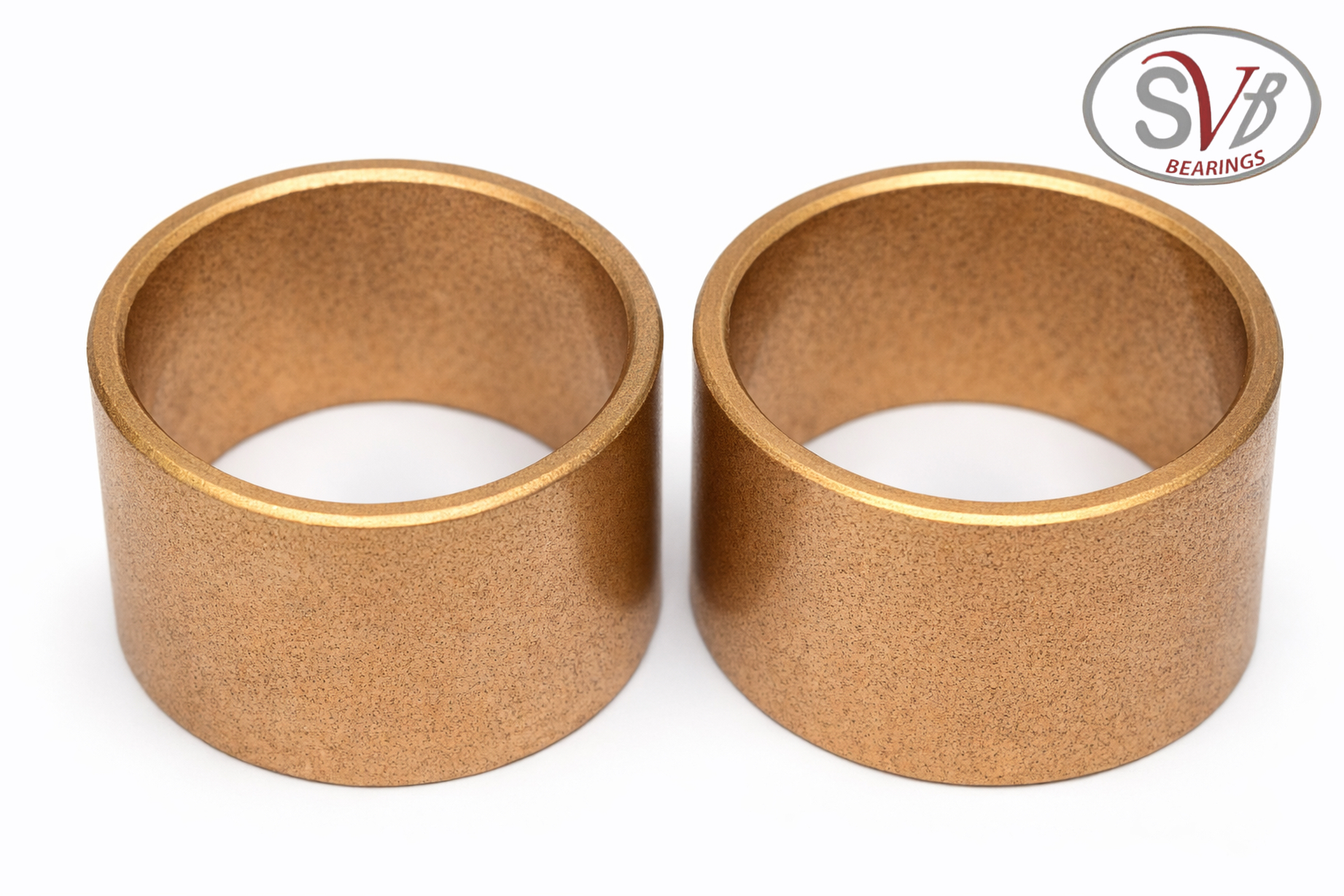

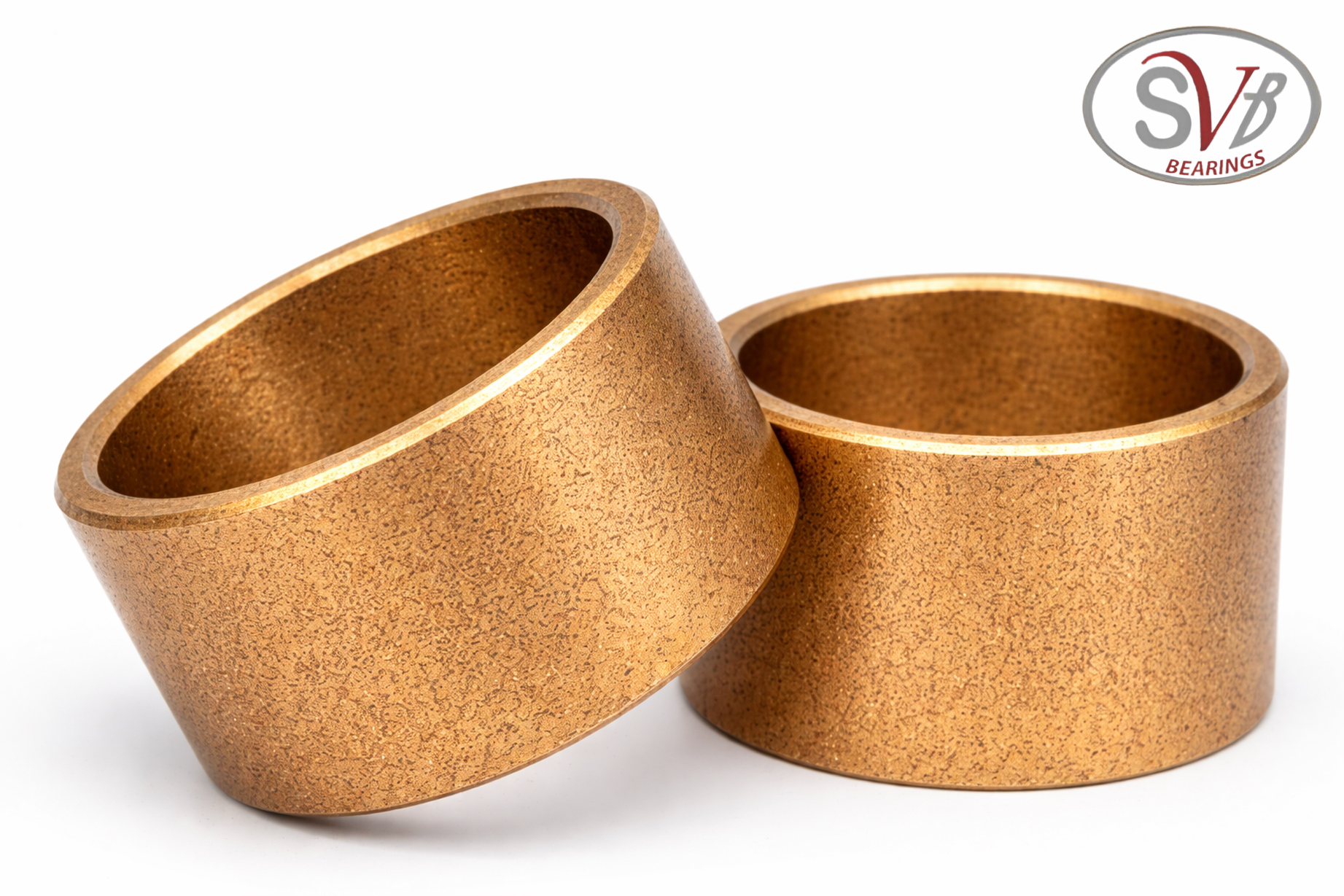

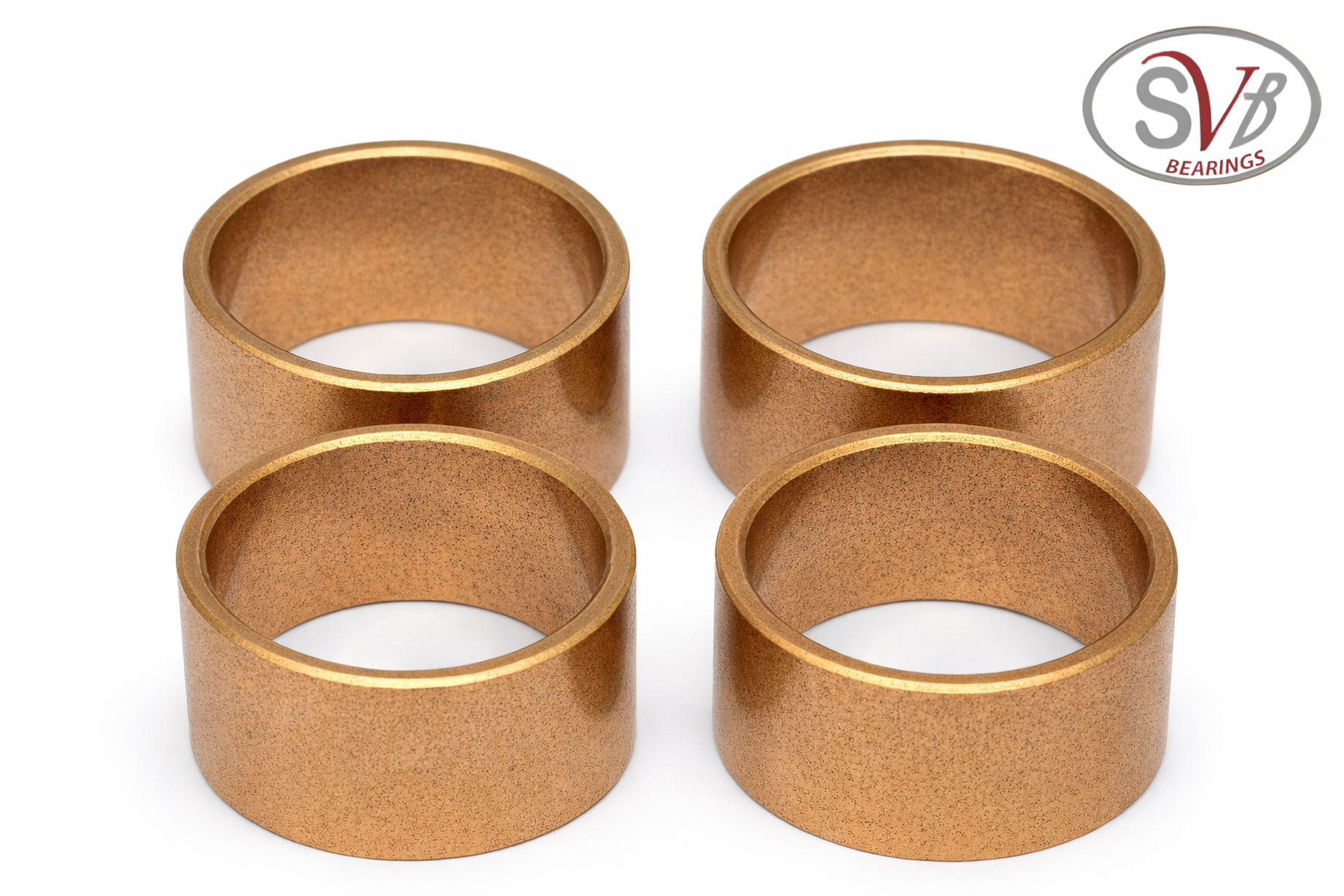

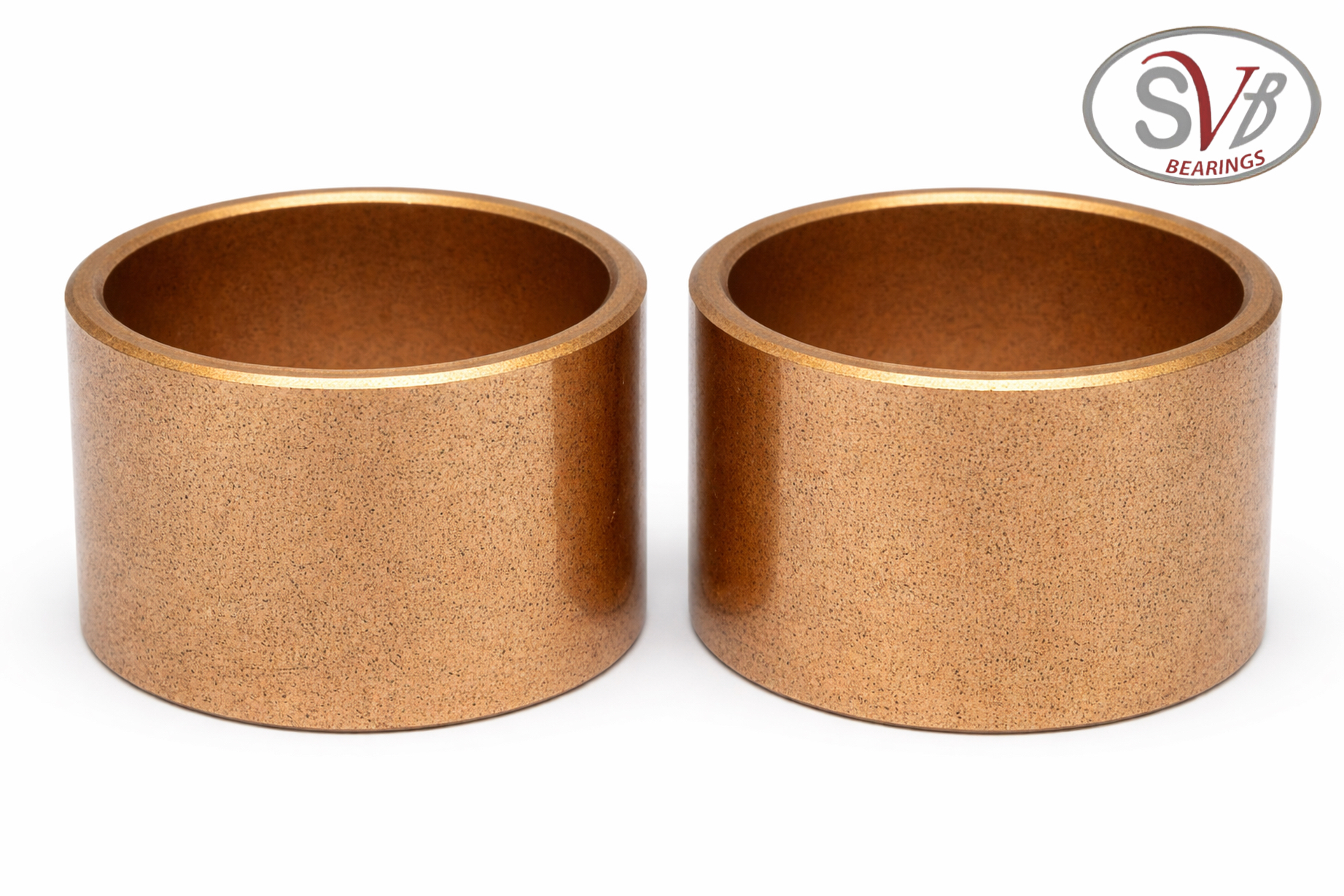

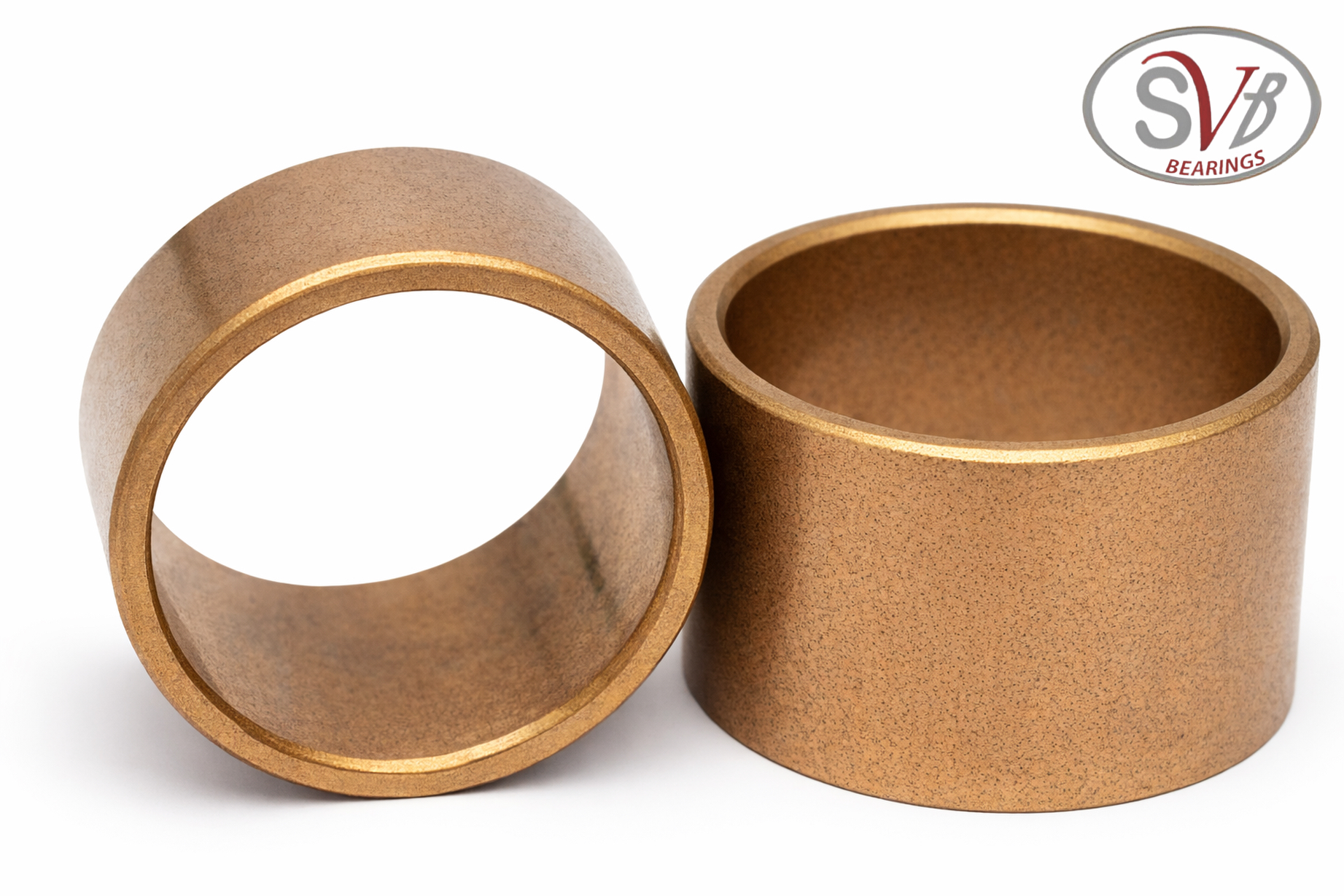

Sintered Bronze Bushes

Sintered Bronze Bushes are high-performance, self-lubricating components. They provide smooth, low-friction, maintenance-free operation. So they work well across a wide range of industrial applications. We manufacture them using powder metallurgy technology. In this process, we compress and sinter bronze powder to form a porous structure.

We then impregnate this porous structure with lubricating oil. So the oil releases gradually during operation. This ensures continuous lubrication, with no need for external oil or grease. That’s what makes sintered bronze bushes ideal for applications that need quiet, efficient, and long-lasting performance.

We engineer every sintered bronze bush for precision and reliability. As a result, they offer excellent wear resistance, consistent operation, and extended service life, even under continuous working conditions.

Key Features

  • Oil-impregnated for self-lubricating performance
  • Porous structure for continuous lubrication
  • Low friction for smooth and quiet operation
  • Excellent wear resistance and durability
  • Maintenance-free with a long service life
  • Suitable for moderate load and speed applications
  • Available in standard and customized sizes

Applications

  • Electric motors and fans
  • Home appliances
  • Industrial and light machinery
  • Automotive components
  • Office equipment
  • Pumps and small mechanical assemblies

Why Choose Our Sintered Bronze Bushes?

We offer precision-engineered sintered bronze bushes. They meet international quality standards for performance. Our products deliver reliable operation, reduced wear, and long service life. Plus, our strict quality control and customization options mean you always get a cost-effective solution. And it’s tailored to your application needs.

FAQs (Frequently Asked Questions)

Q1. What is a sintered bronze bush?
It’s a bush made using powdered bronze. We design it with a porous structure that holds lubricating oil.

Q2. Do sintered bronze bushes require lubrication?
No. They’re pre-lubricated. So they provide continuous lubrication during operation.

Q3. Where are sintered bronze bushes used?
They’re widely used in motors, appliances, and light machinery applications.

Q4. Do you offer customized sizes?
Yes. We provide bushes in various sizes and specifications, based on what you need.

Technical Data
Performance Index Data
Max Load Capacity Static load 35N/mm²
Dynamic load 18N/mm²
Max Sliding Speed Dry friction 2.0m/s
Oil lubrication 5.0m/s
Max PV Value Limit Dry friction 1.2N/mm² · m/s
Oil lubrication 2.8N/mm² · m/s
Friction Coefficient Dry friction 0.08~0.18
Oil lubrication 0.03~0.10
Working Temperature -40℃~+120℃
Thermal Conductivity 58W/m · k
Coefficient of Thermal Expansion 18X10⁻⁶/K
