Manufacturer – SVB Bearings private limited
| Specification | |
|---|---|
| Material | As per Requirement |
| Inner Diameter | 3mm to 300mm |
| Outer Diameter | 3mm to 300mm |
| Length | 3mm to 300mm |
| Shape | Cylindrical |
| Lubrication | As per Requirement |
| Brand | SVB |
| Minimum Order Quantity | 1 |
| Delivery Time | Depends on Quantity |

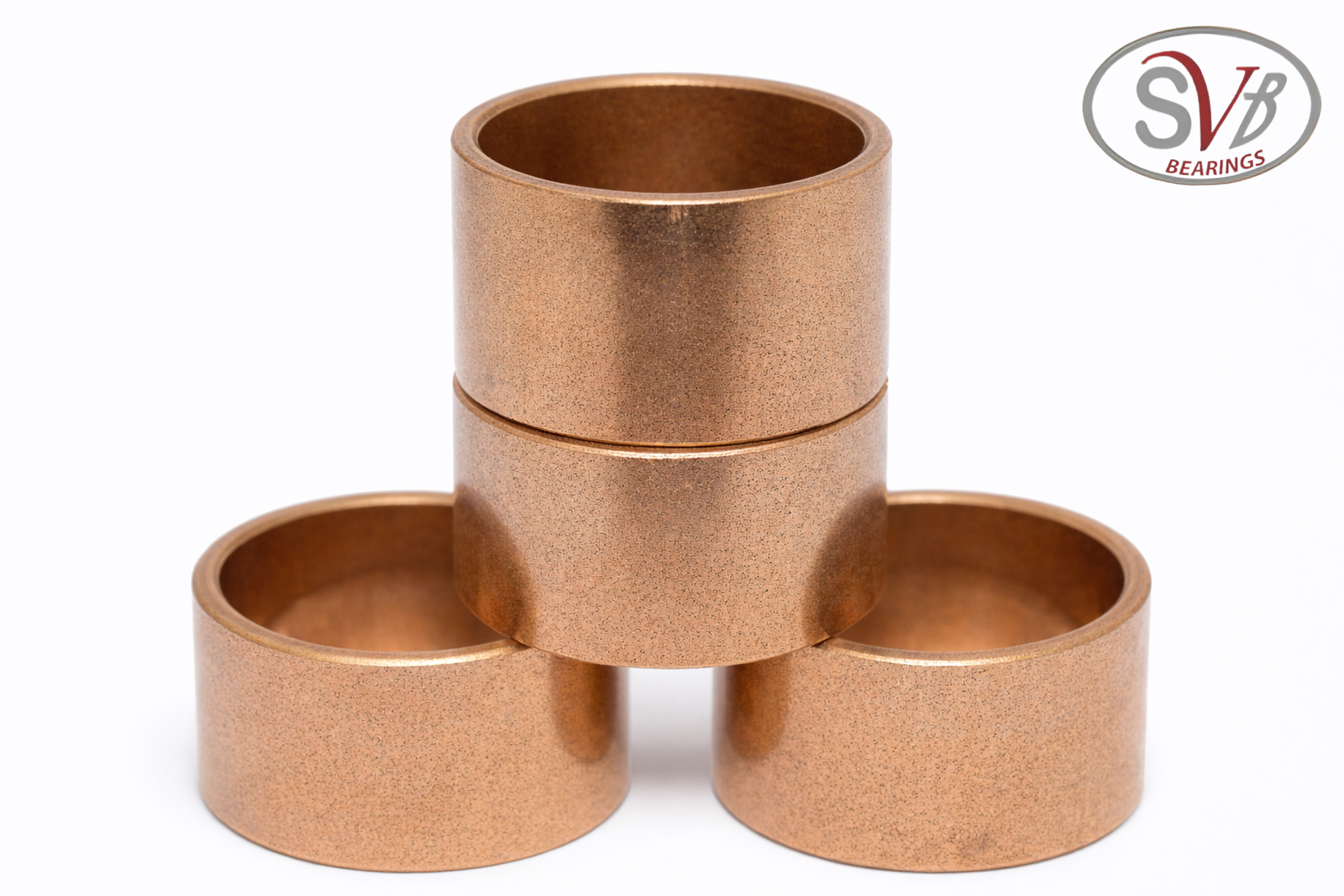

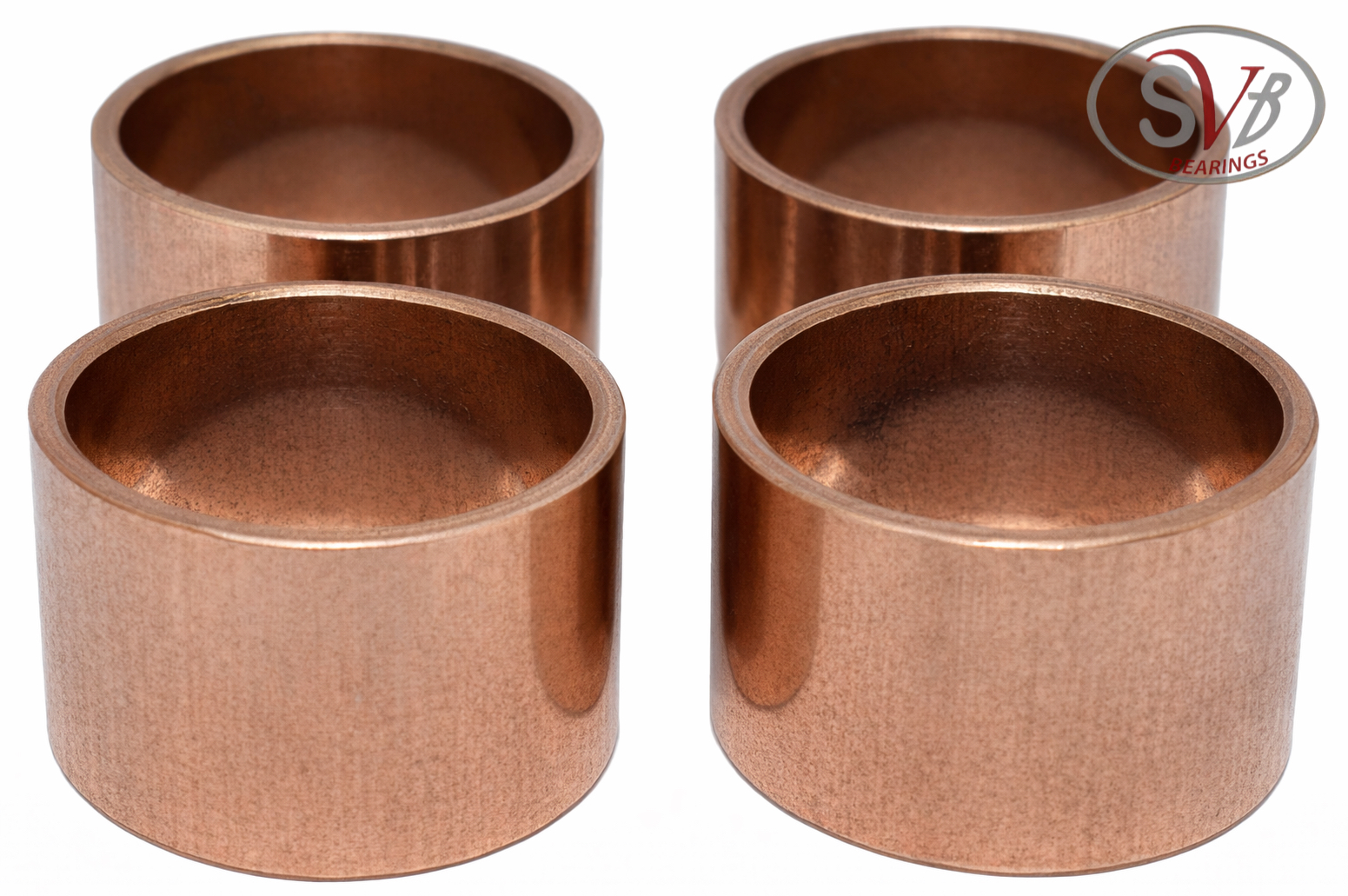

Copper Bushes are high-performance components designed to provide smooth operation, efficient heat dissipation, and reliable performance in various industrial and mechanical applications. Manufactured using high-quality copper, these bushes offer excellent thermal conductivity, good corrosion resistance, and stable performance under varying operating conditions.
These bushes are widely used to support rotating or sliding shafts, helping reduce friction and minimize wear between moving parts. Their superior heat transfer properties make them especially suitable for applications where temperature control and efficient heat dissipation are important.
Engineered for precision and durability, copper bushes ensure consistent performance, reduced maintenance, and long service life in both light and moderate-duty applications.
We offer precision-engineered copper bushes that meet international standards for quality and performance. Our products are designed to deliver reliable operation, reduced wear, and long service life. With strict quality control and customization options, we provide cost-effective solutions tailored to your application requirements.
Q1. What is a copper bush?
It is a bush made from copper used to reduce friction and support moving parts.
Q2. Where are copper bushes used?
They are widely used in electrical, mechanical, and industrial applications.
Q3. What are the advantages of copper bushes?
They offer excellent heat conductivity, corrosion resistance, and smooth performance.
Q4. Do you offer customized sizes?
Yes, we provide bushes in various sizes and specifications as per customer requirements.
| Technical Data | ||
|---|---|---|
| Performance Index | Data | |
| Max Load Capacity | Static load | 100N/mm² |
| Dynamic load | 55N/mm² | |
| Max Sliding Speed | Dry friction | 1.0m/s |
| Oil lubrication | 3.0m/s | |
| Max PV Value Limit | Dry friction | 1.8N/mm² · m/s |
| Oil lubrication | 3.8N/mm² · m/s | |
| Friction Coefficient | Dry friction | 0.10~0.20 |
| Oil lubrication | 0.03~0.08 | |
| Working Temperature | -40℃~+220℃ | |
| Thermal Conductivity | 385W/m · k | |
| Coefficient of Thermal Expansion | 17X10⁻⁶/K | |
