Manufacturer – SVB Bearings private limited
| Specification | |
|---|---|
| Material | As per Requirement |
| Inner Diameter | 3mm to 300mm |
| Outer Diameter | 3mm to 300mm |
| Length | 3mm to 300mm |
| Shape | Cylindrical |
| Lubrication | As per Requirement |
| Brand | SVB |
| Minimum Order Quantity | 1 |
| Delivery Time | Depends on Quantity |

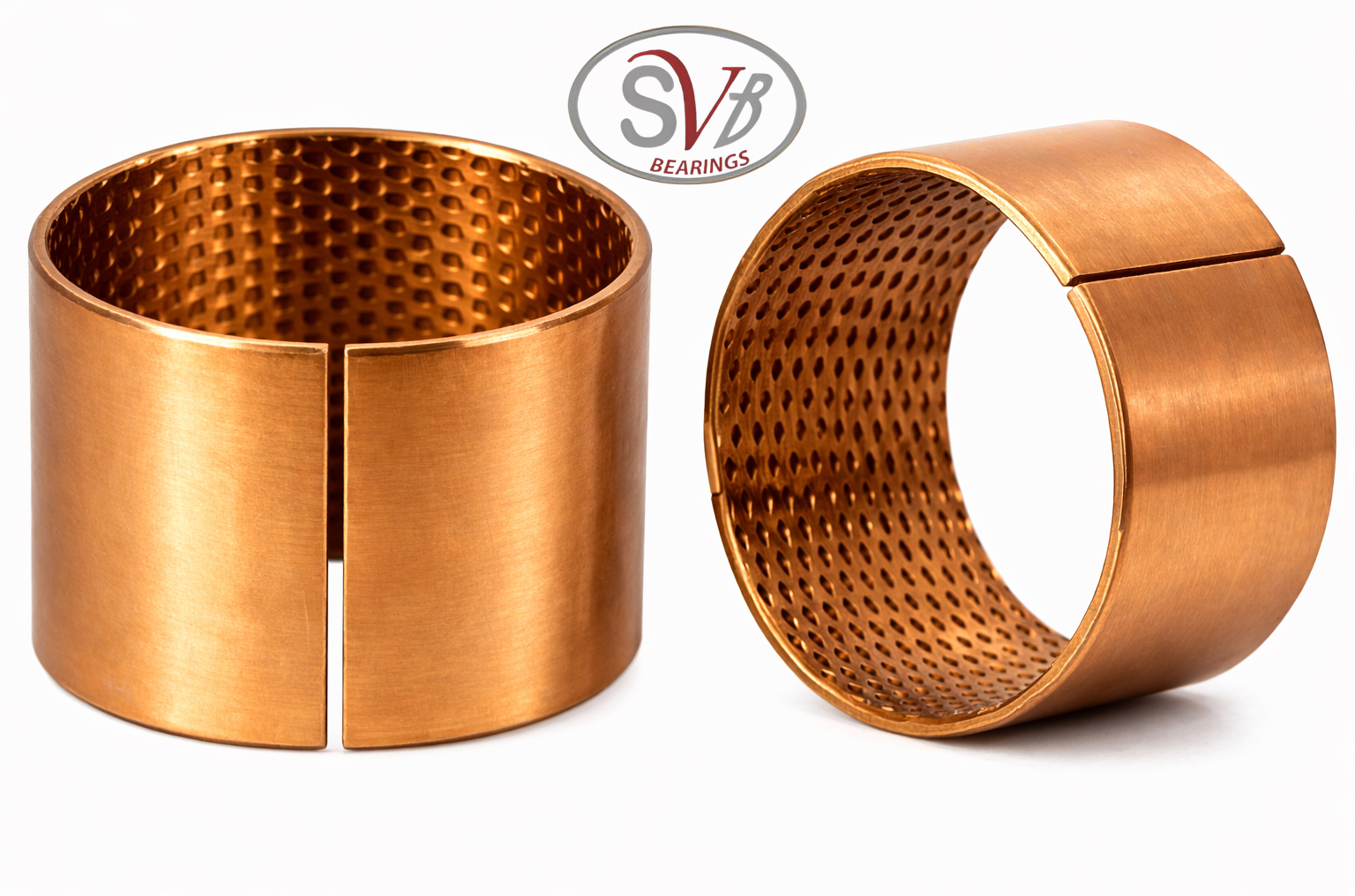

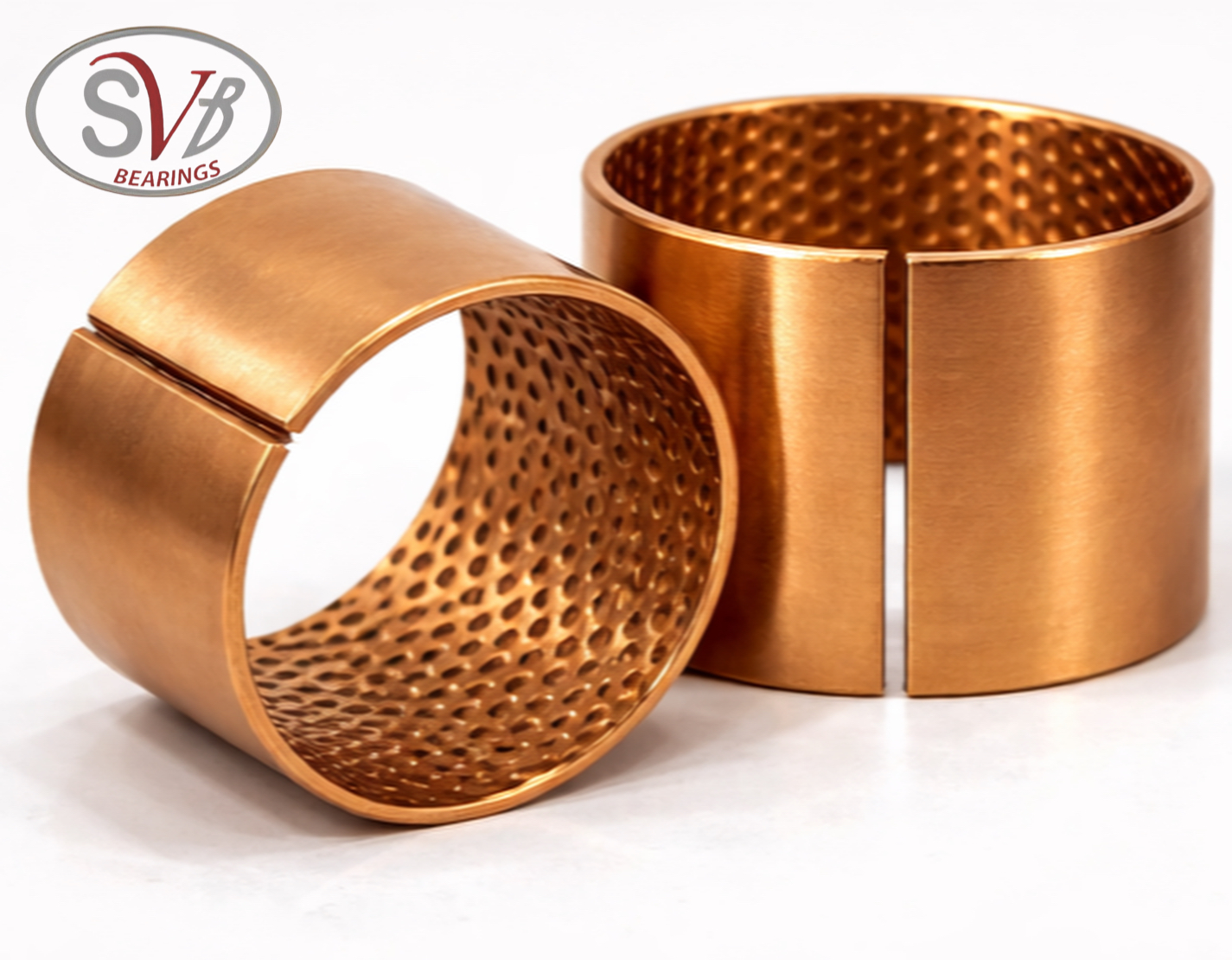

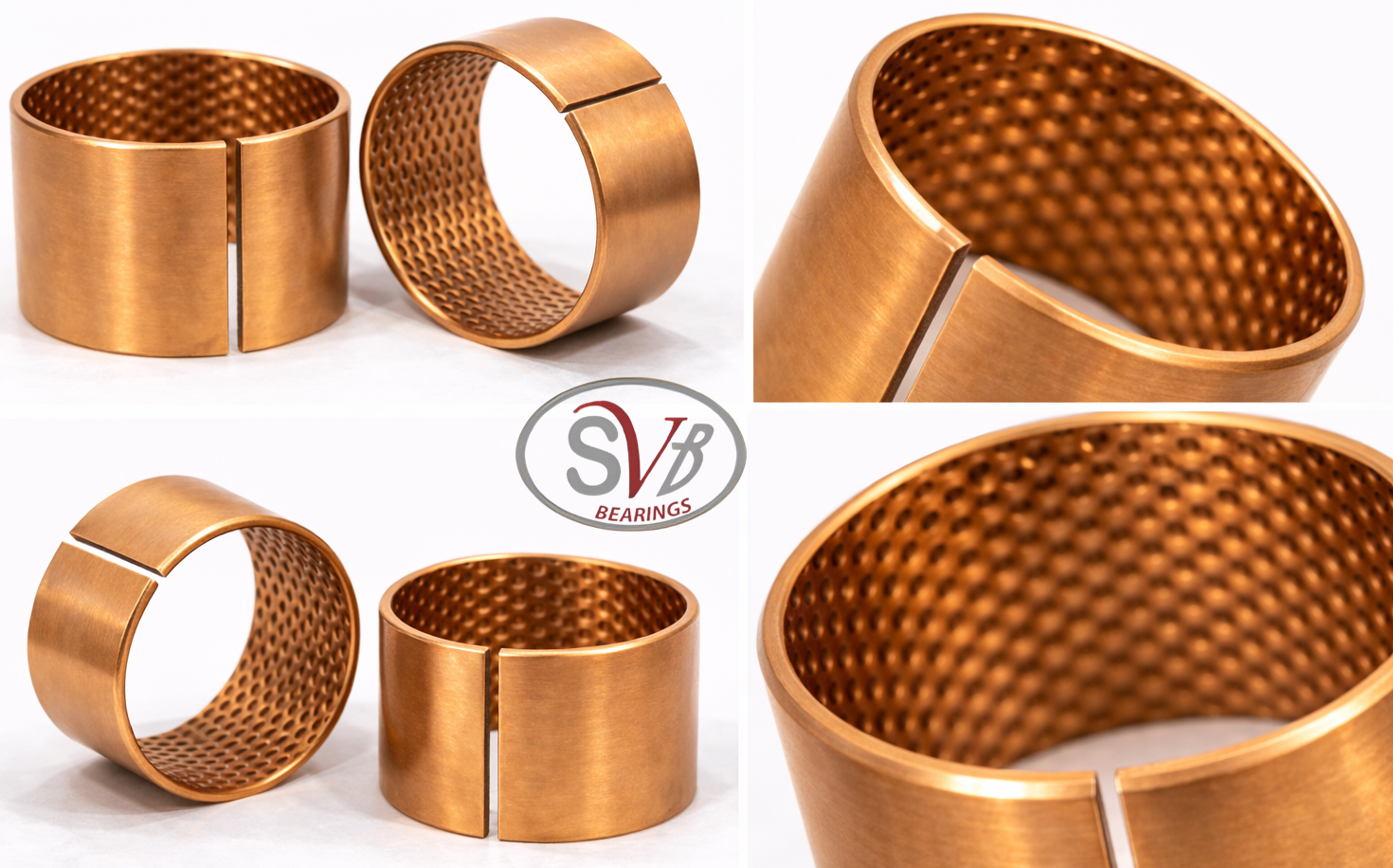

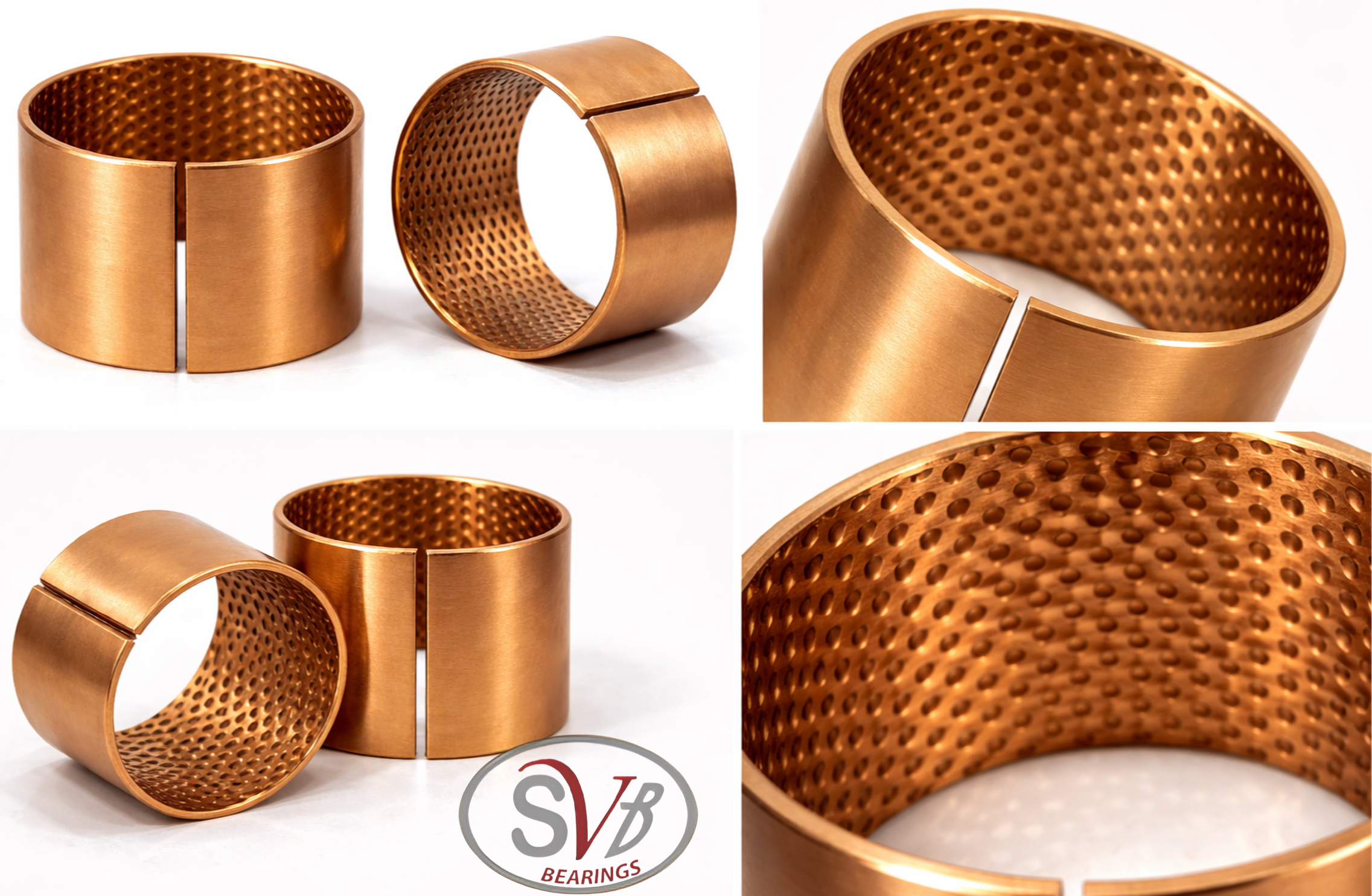

Self Lubricating Bronze Bush Bearings are high-performance components designed to provide smooth, low-friction, and maintenance-free operation in demanding industrial applications. Manufactured using premium-grade bronze combined with advanced self-lubricating technology, these bush bearings eliminate the need for external lubrication, ensuring consistent and reliable performance.
These bearings form a lubricating layer during operation, reducing direct contact between moving parts and minimizing wear. This results in improved efficiency, reduced maintenance, and longer service life, even under continuous and heavy-duty conditions.
Engineered for precision and durability, self-lubricating bronze bush bearings are ideal for applications where lubrication is difficult or where consistent performance is critical.
We offer precision-engineered bush bearings that meet international standards for quality and performance. Our products are designed to deliver reliable operation, reduced wear, and long service life. With strict quality control and customization options, we provide cost-effective solutions tailored to your industrial requirements.
Q1. What is a self-lubricating bronze bush bearing?
It is a bronze bearing designed to operate without external lubrication, reducing friction and wear.
Q2. Where are these bearings used?
They are widely used in industrial machinery, automotive systems, and applications requiring low maintenance.
Q3. What are the benefits of self-lubricating bronze bush bearings?
They reduce friction, eliminate lubrication needs, and improve service life.
Q4. Do you offer customized sizes?
Yes, we provide bush bearings in various sizes and specifications as per customer requirements.
| Technical Data | ||
|---|---|---|
| Performance Index | Data | |
| Max Load Capacity | Static load | 140N/mm² |
| Dynamic load | 75N/mm² | |
| Max Sliding Speed | Dry friction | 2.0m/s |
| Oil lubrication | 4.0m/s | |
| Max PV Value Limit | Dry friction | 2.8N/mm² · m/s |
| Oil lubrication | 5.5N/mm² · m/s | |
| Friction Coefficient | Dry friction | 0.06~0.18 |
| Oil lubrication | 0.03~0.10 | |
| Working Temperature | -50℃~+250℃ | |
| Thermal Conductivity | 60W/m · k | |
| Coefficient of Thermal Expansion | 17X10⁻⁶/K | |
