Manufacturer – SVB Bearings private limited
| Specification | |
|---|---|
| Material | As per Requirement |
| Inner Diameter | 3mm to 300mm |
| Outer Diameter | 3mm to 300mm |
| Length | 3mm to 300mm |
| Shape | Cylindrical |
| Lubrication | As per Requirement |
| Brand | SVB |
| Minimum Order Quantity | 1 |
| Delivery Time | Depends on Quantity |

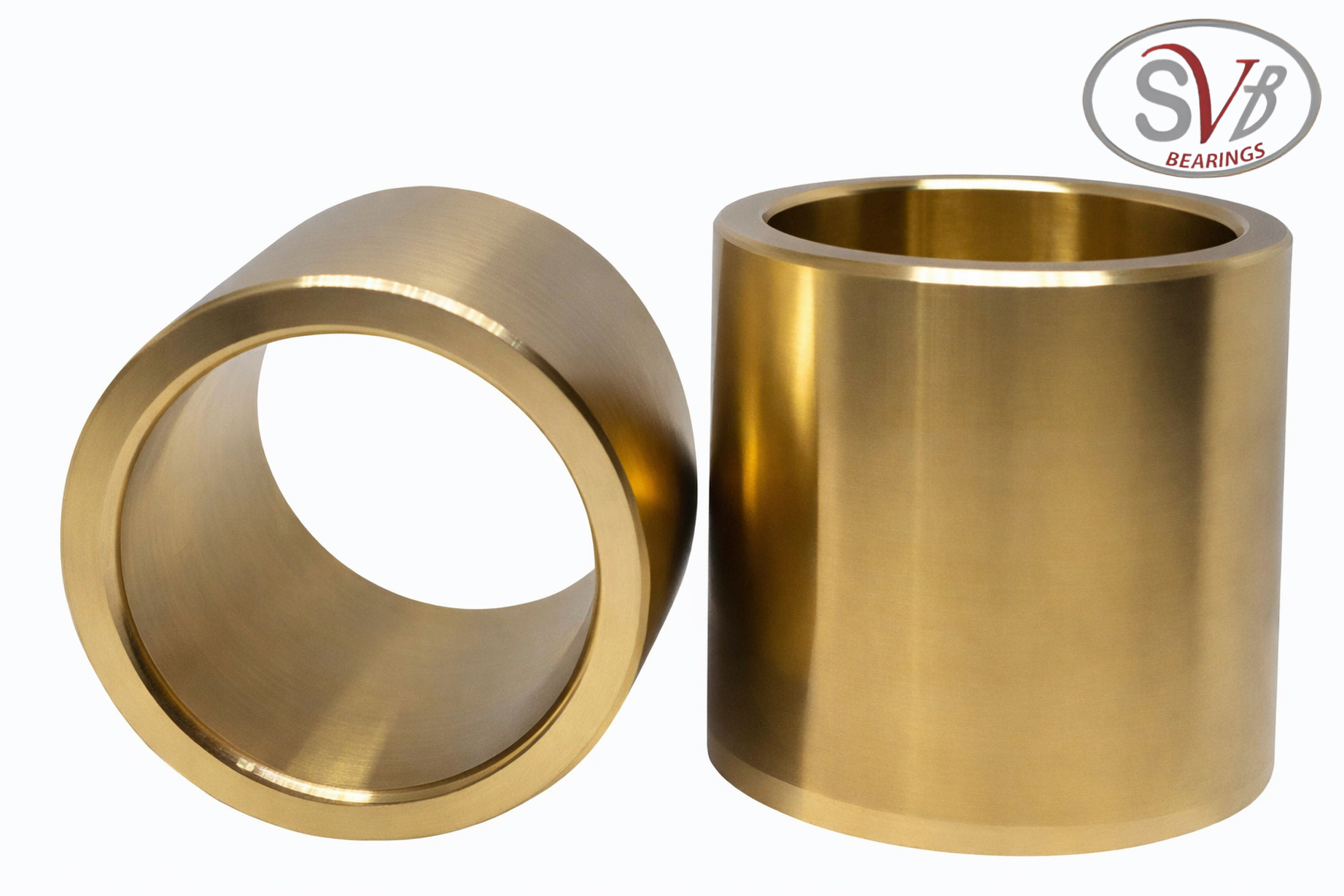

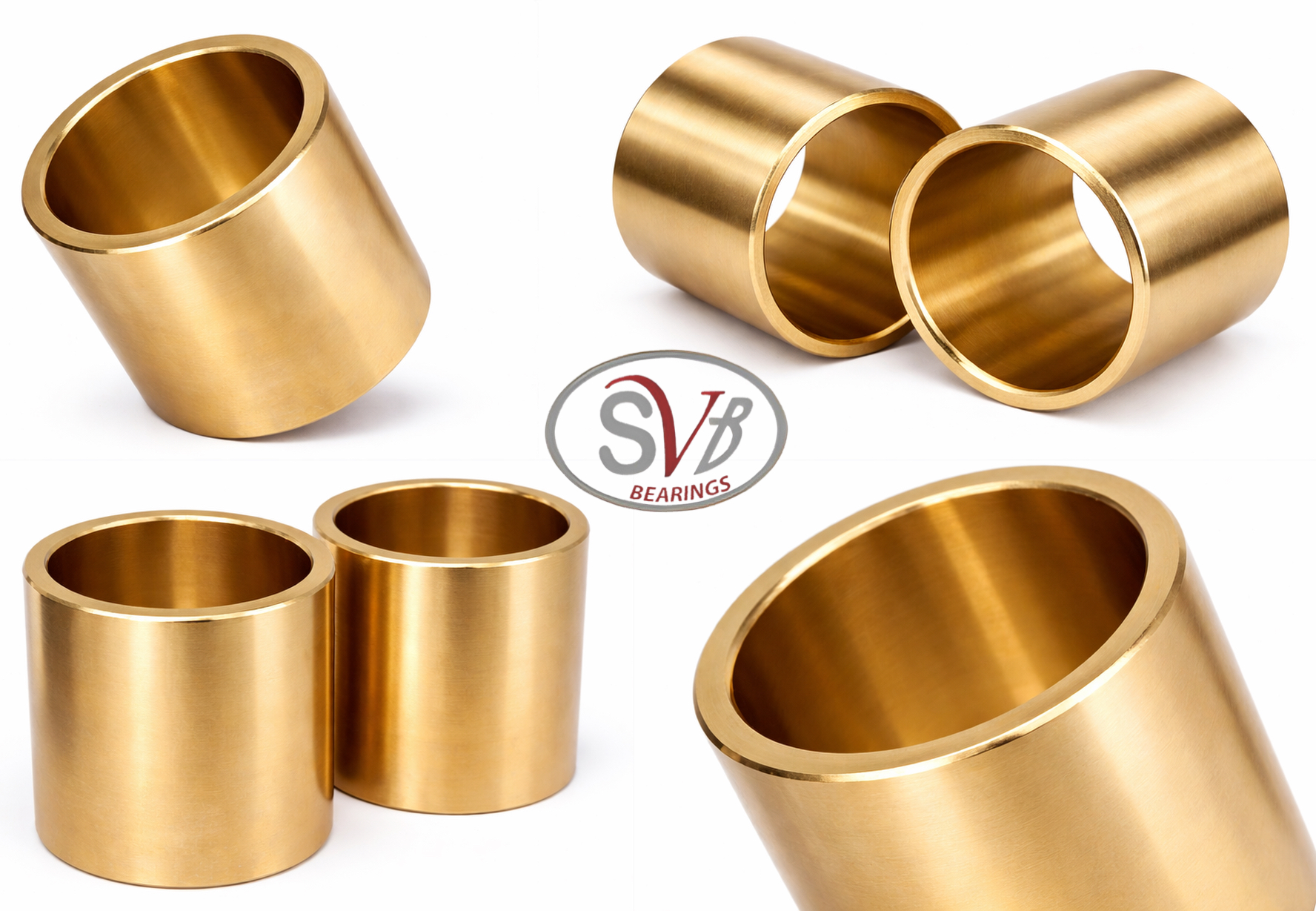

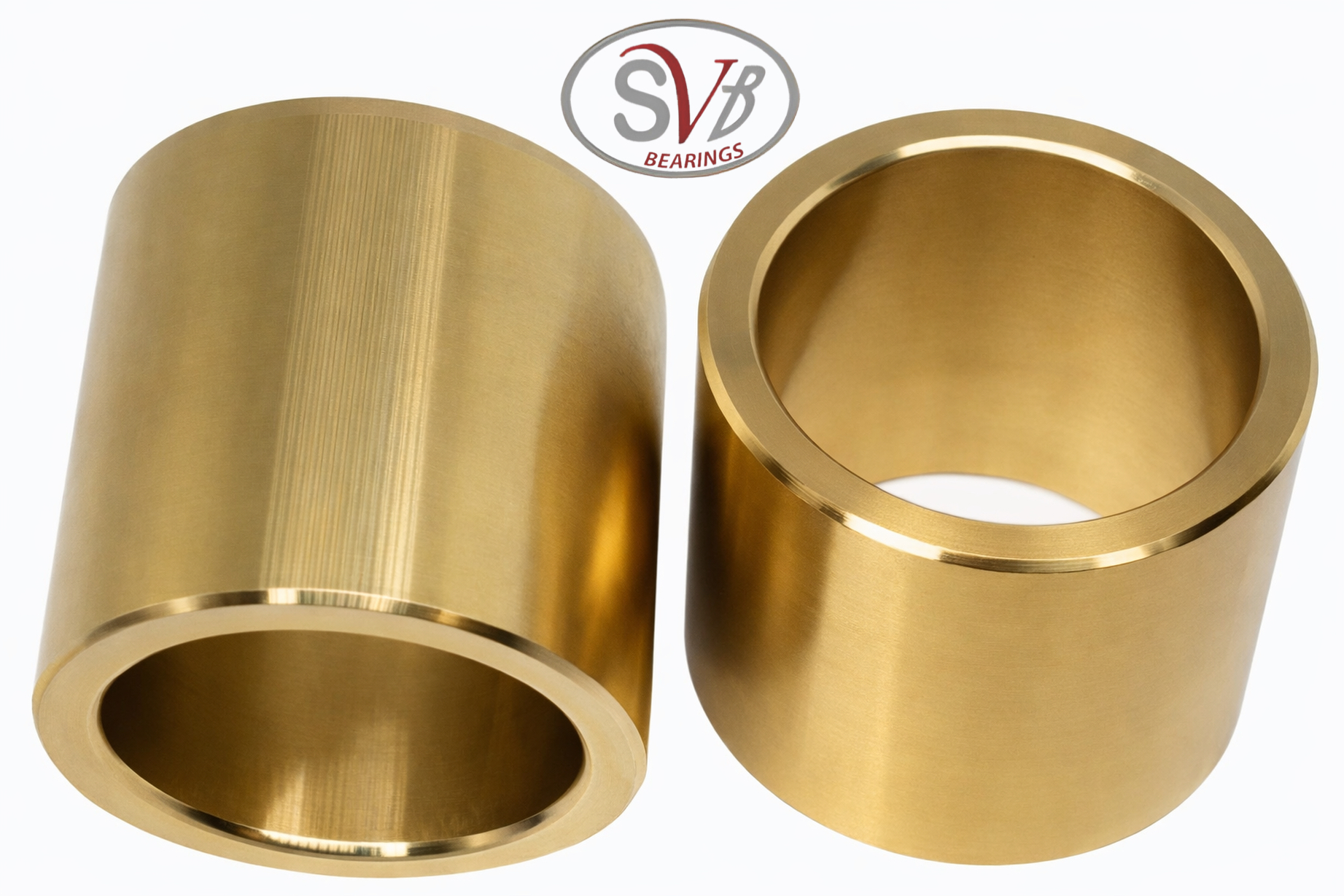

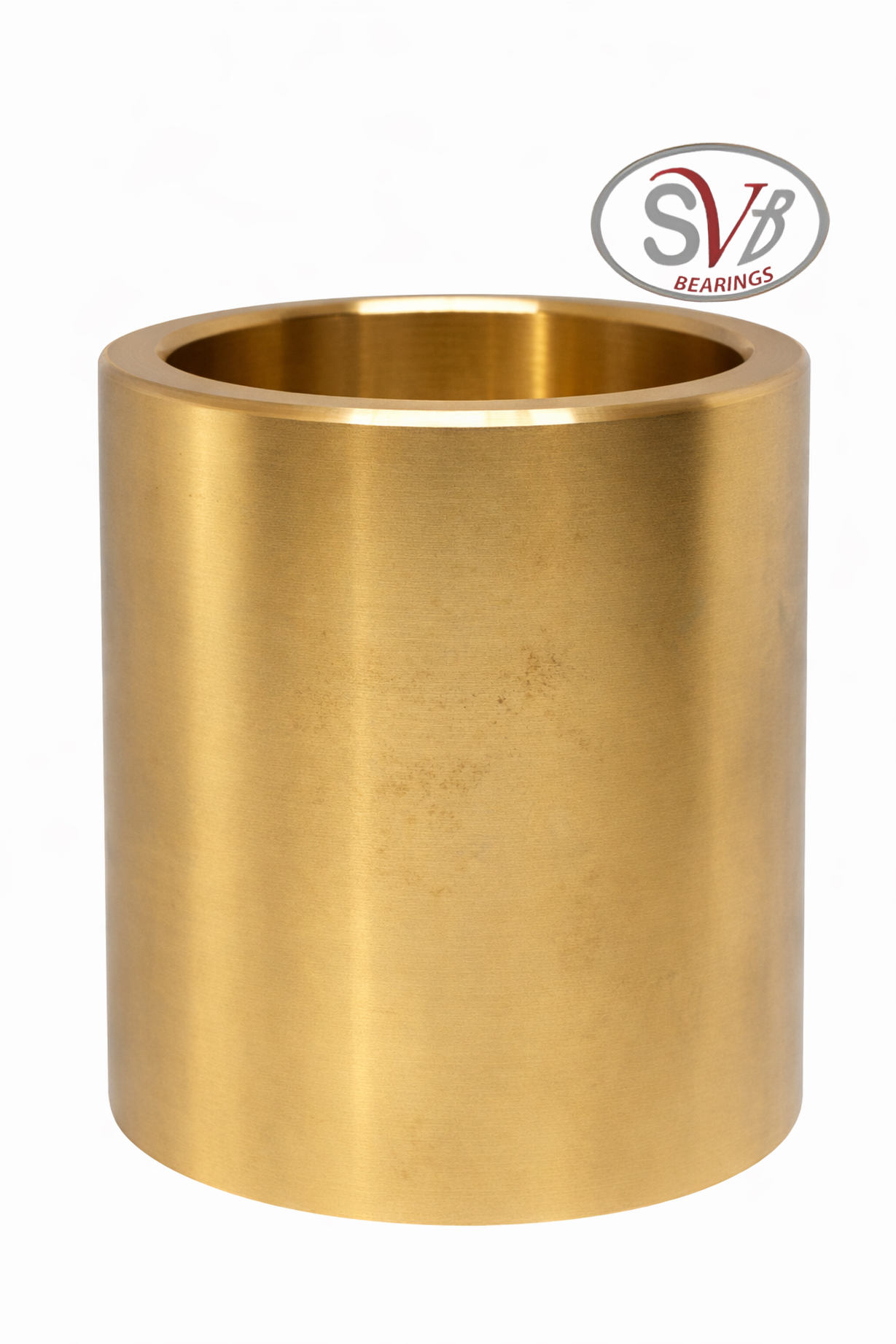

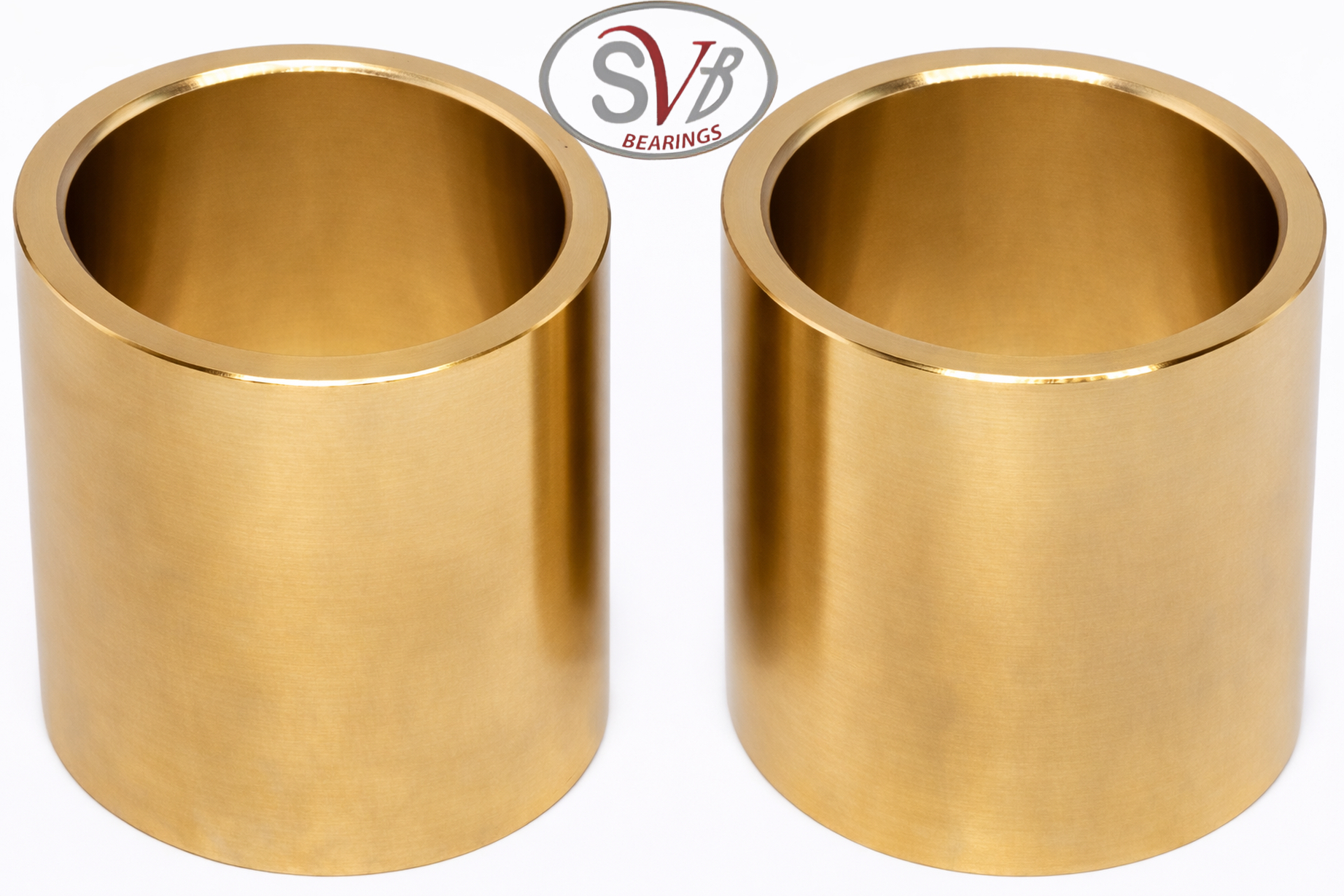

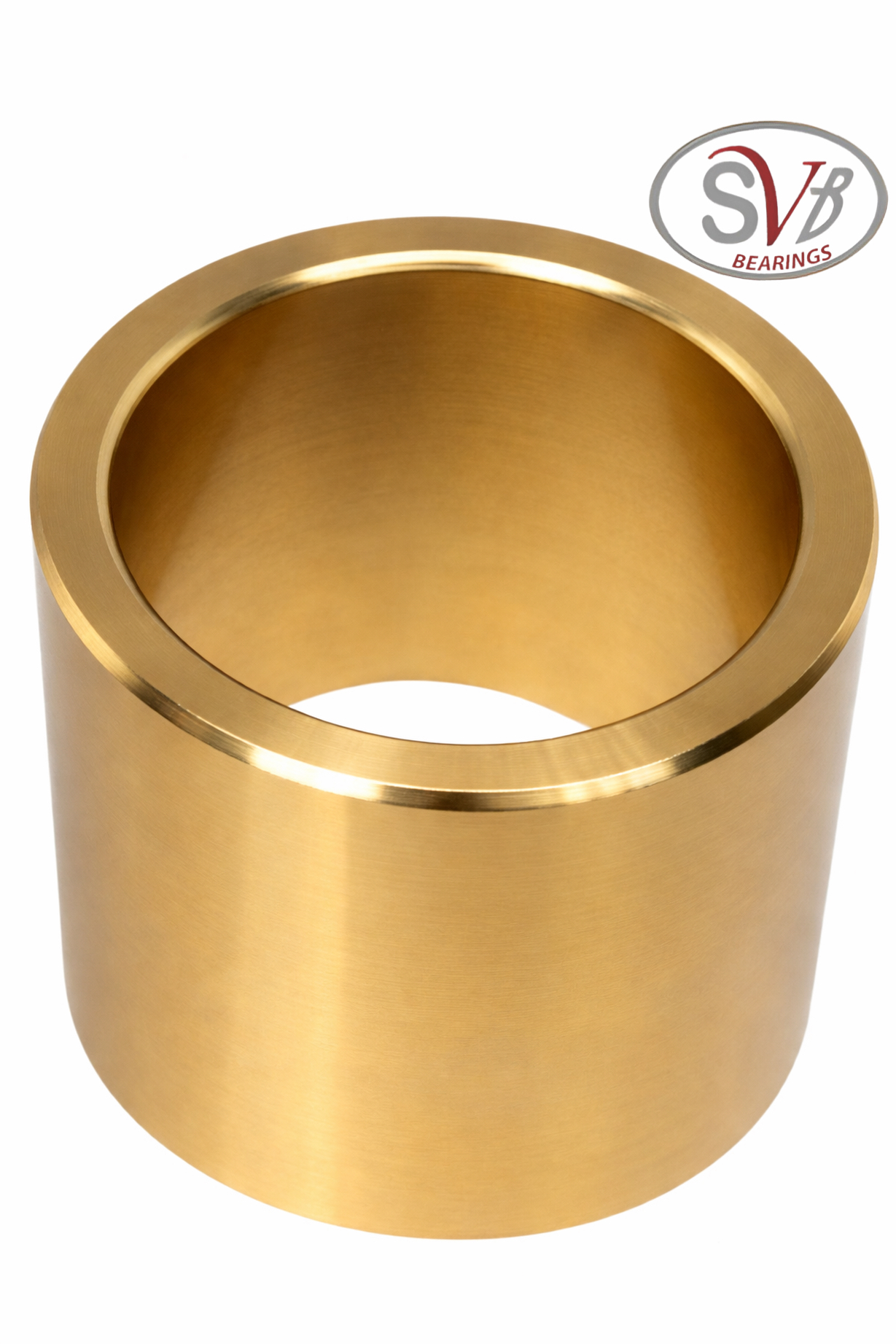

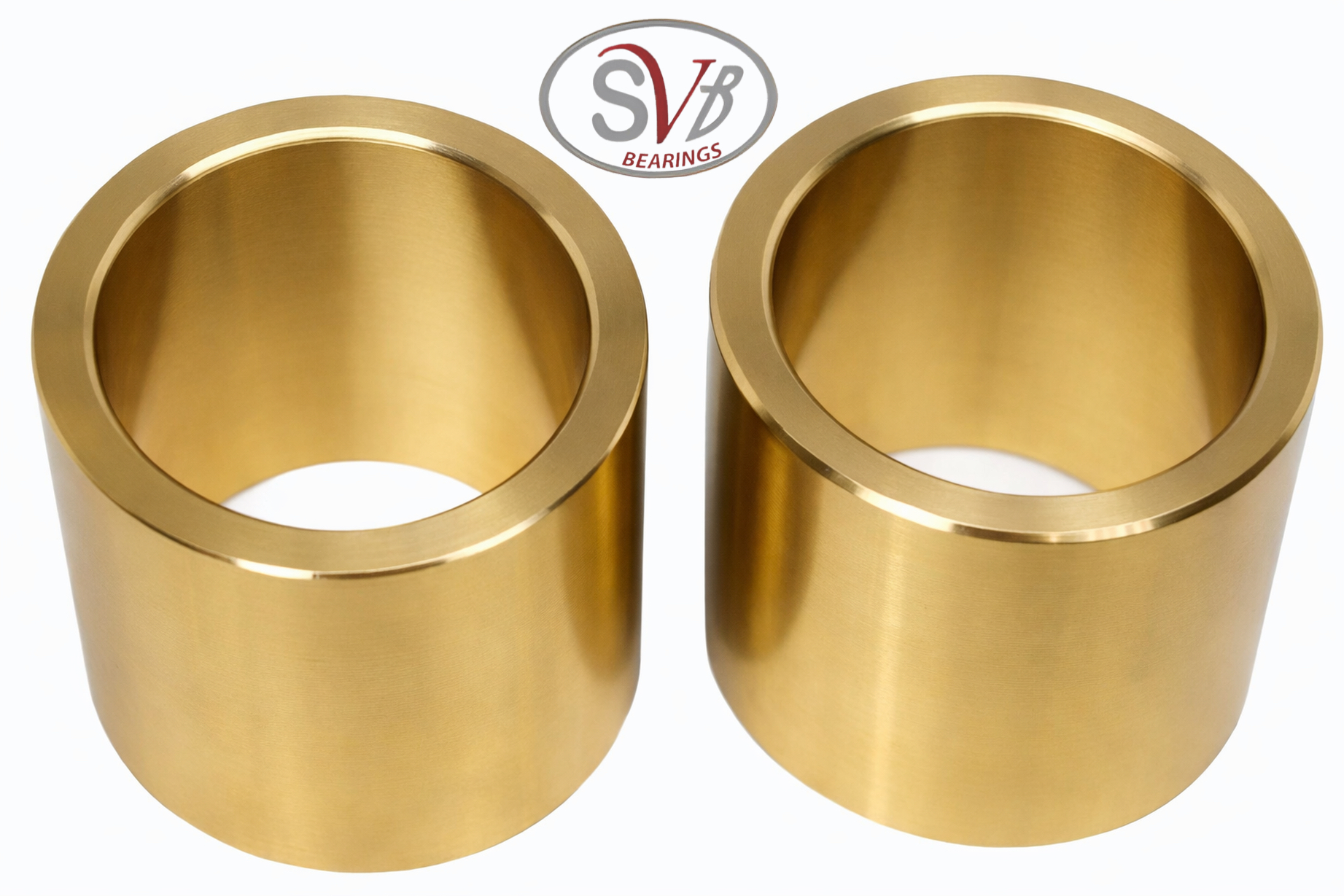

Phosphor Bronze Bushes are high-performance bearing components designed to deliver excellent strength, wear resistance, and smooth operation in demanding industrial applications. Manufactured using premium-grade phosphor bronze, these bushes offer superior mechanical properties, including high fatigue strength, good corrosion resistance, and excellent load-bearing capacity.
Phosphor bronze is known for its low friction characteristics and resistance to wear, making these bushes ideal for applications involving continuous movement, high loads, and harsh operating conditions. Their robust construction ensures reliable performance and long service life, even under challenging environments.
Engineered for precision and durability, phosphor bronze bushes provide consistent operation, reduced maintenance, and improved efficiency in various mechanical systems.
We offer precision-engineered phosphor bronze bushes that meet international standards for quality and performance. Our products are designed to deliver reliable operation, reduced wear, and long service life. With strict quality control and customization options, we provide cost-effective solutions tailored to your industrial requirements.
Q1. What are phosphor bronze bushes?
They are bushes made from phosphor bronze, known for high strength, wear resistance, and low friction.
Q2. Where are phosphor bronze bushes used?
They are widely used in industrial machinery, marine equipment, and engineering applications.
Q3. What are the advantages of phosphor bronze bushes?
They offer durability, corrosion resistance, and excellent performance under heavy loads.
Q4. Do you offer customized sizes?
Yes, we provide bushes in various sizes and specifications as per customer requirements.
| Technical Data | ||
|---|---|---|
| Performance Index | Data | |
| Max Load Capacity | Static load | 140N/mm² |
| Dynamic load | 75N/mm² | |
| Max Sliding Speed | Dry friction | 1.5m/s |
| Oil lubrication | 3.5m/s | |
| Max PV Value Limit | Dry friction | 2.0N/mm² · m/s |
| Oil lubrication | 4.5N/mm² · m/s | |
| Friction Coefficient | Dry friction | 0.08~0.18 |
| Oil lubrication | 0.03~0.08 | |
| Working Temperature | -40℃~+250℃ | |
| Thermal Conductivity | 58W/m · k | |
| Coefficient of Thermal Expansion | 18X10⁻⁶/K | |
