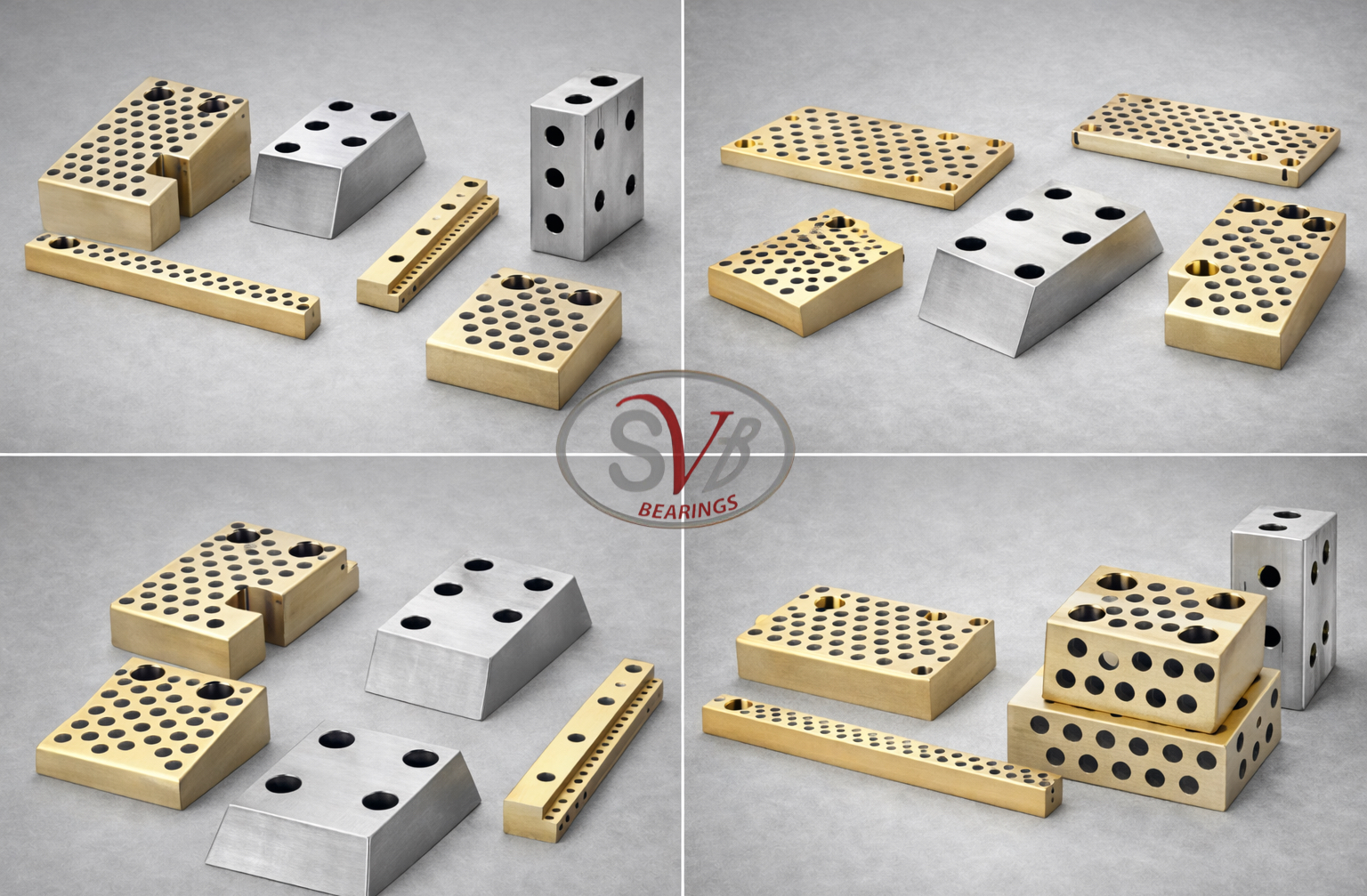

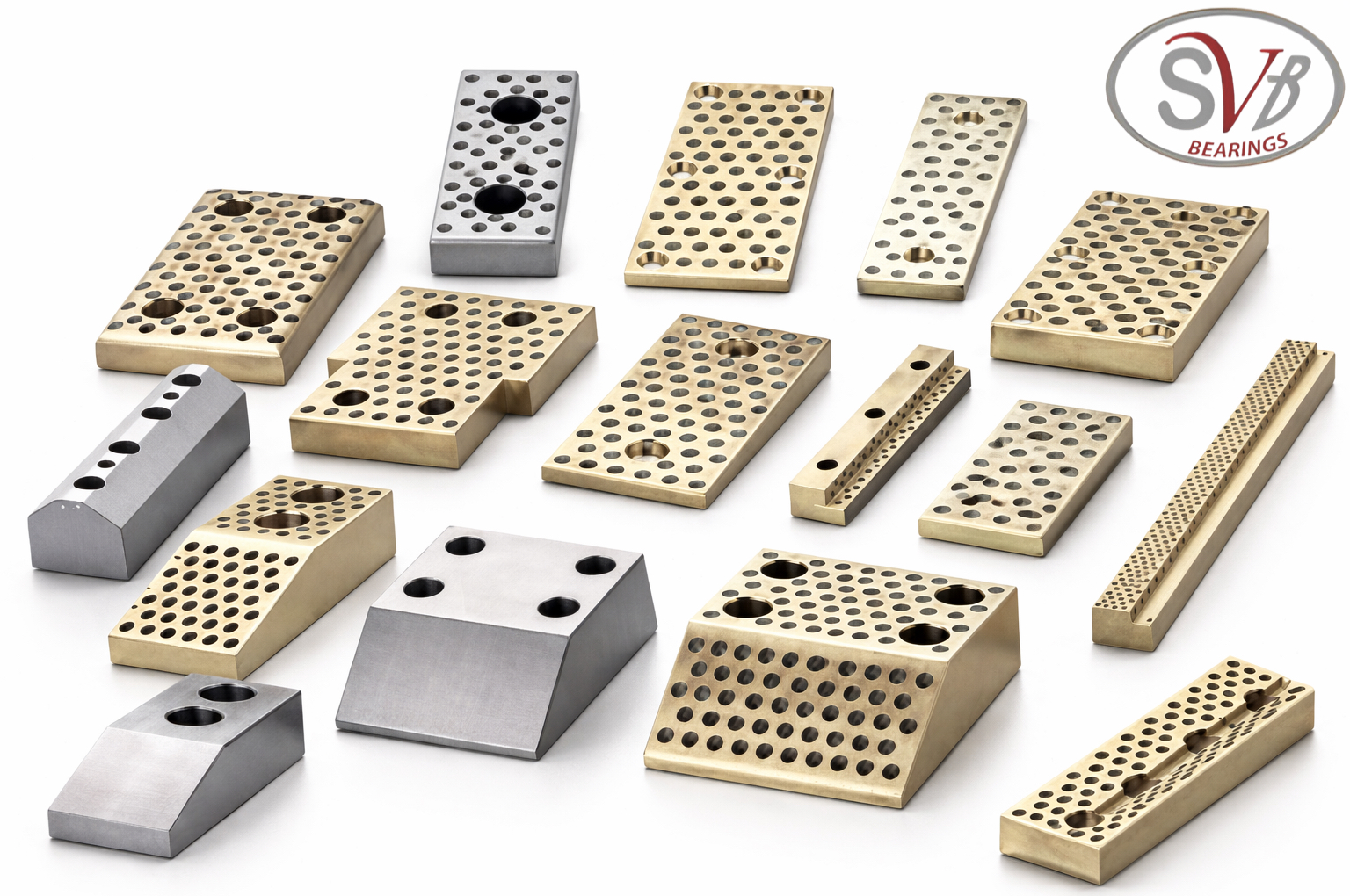

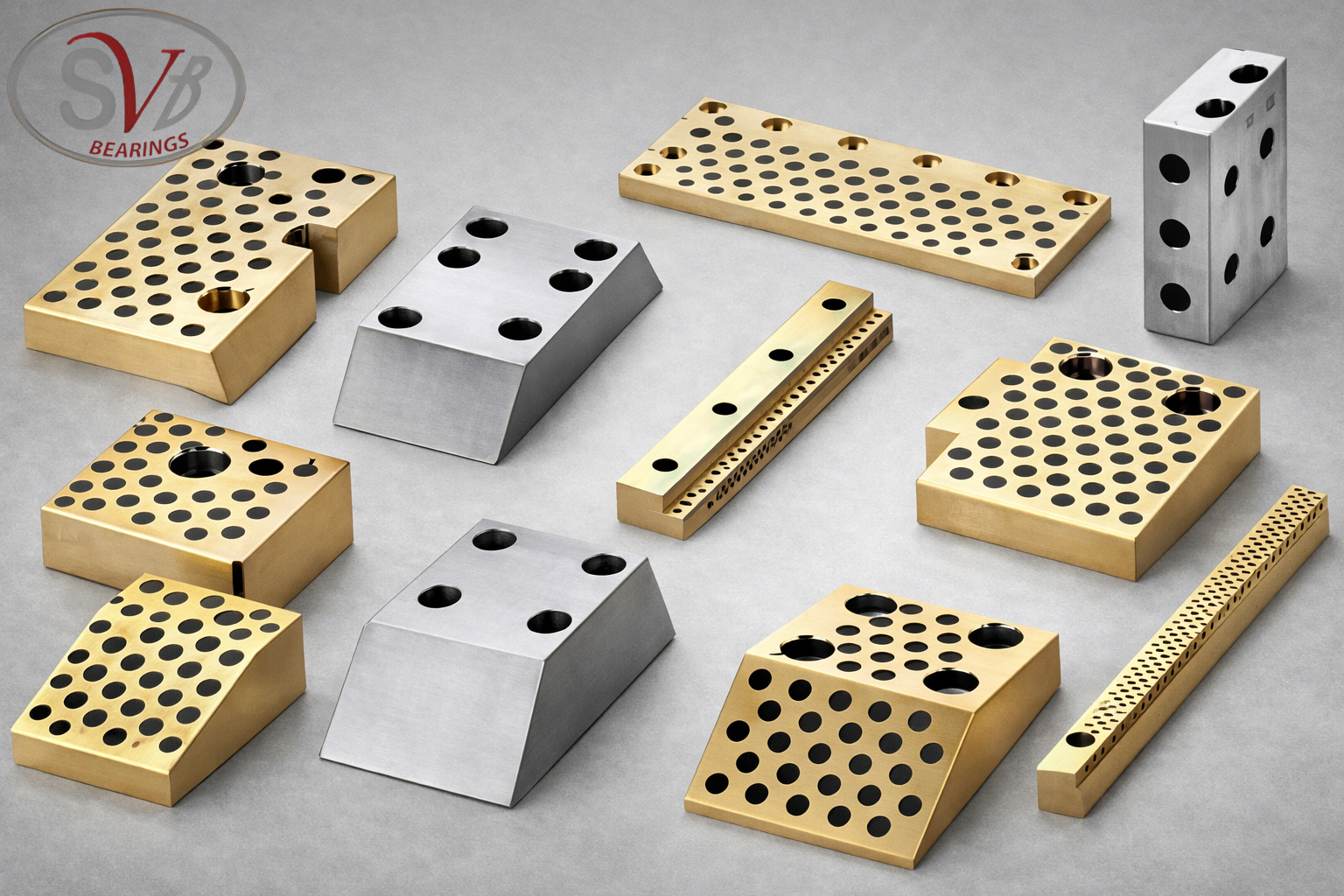

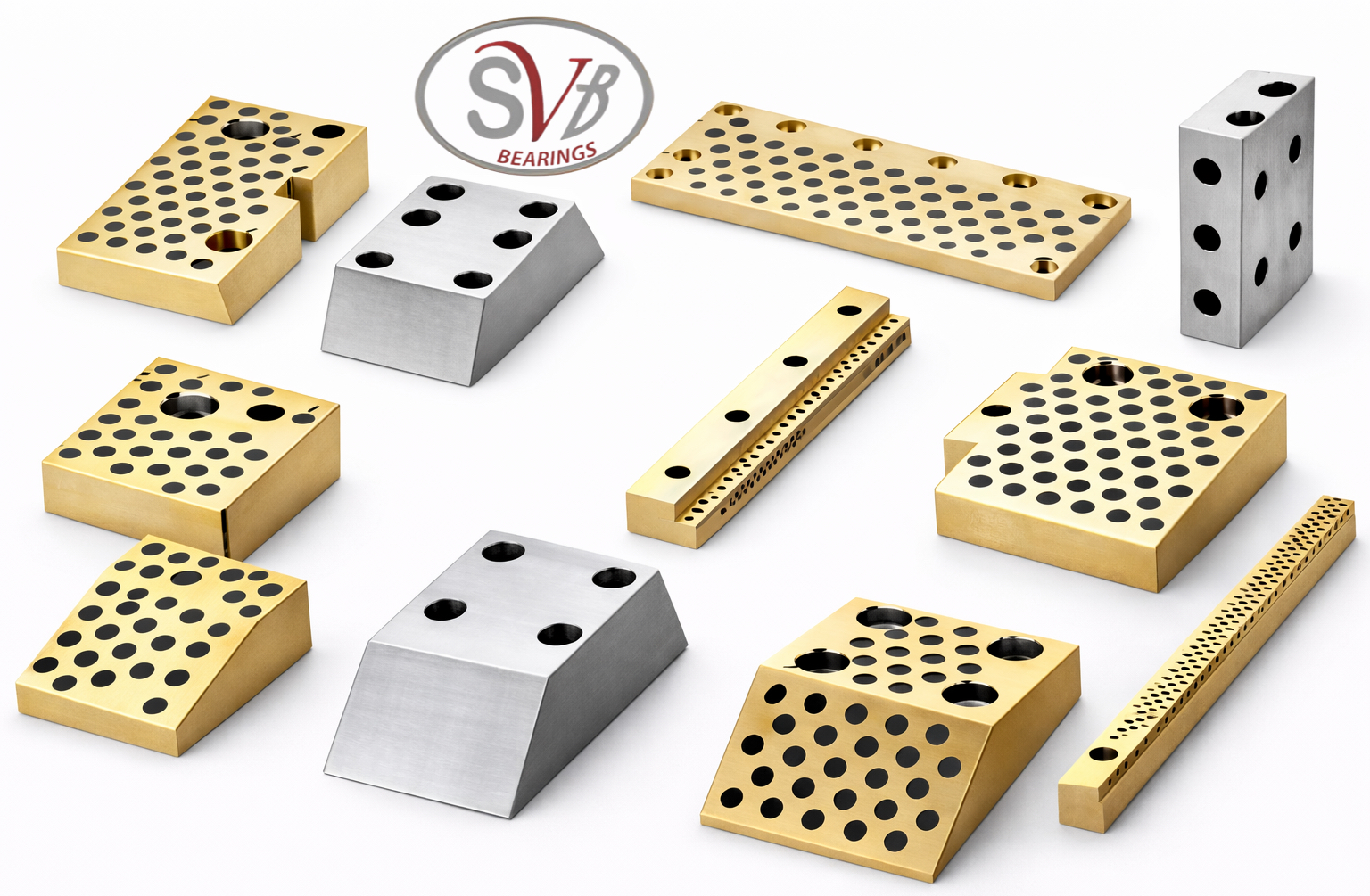

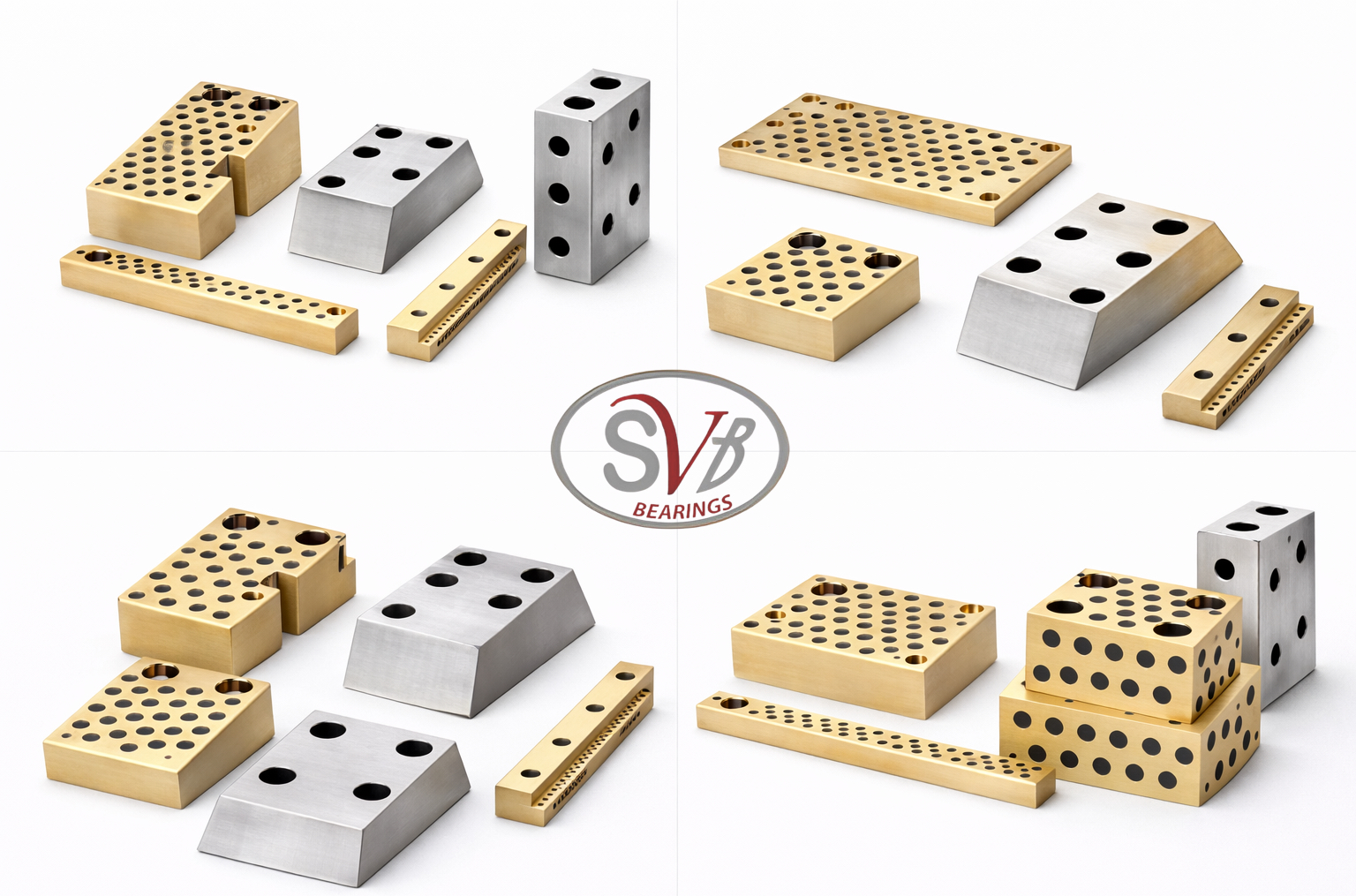

Graphite Filled Bronze Wear Plate
| Specification | |
|---|---|
| Material | As per Requirement |
| Inner Diameter | 3mm to 300mm |
| Outer Diameter | 3mm to 300mm |
| Length | 3mm to 300mm |
| Shape | Cylindrical |
| Lubrication | As per Requirement |
| Brand | SVB |
| Minimum Order Quantity | 1 |
| Delivery Time | Depends on Quantity |
Graphite Filled Bronze Wear Plates
Graphite-filled bronze wear plates are high-performance, self-lubricating components. They provide smooth sliding motion and superior wear resistance in demanding industrial applications. We manufacture these wear plates using premium-grade bronze filled with solid graphite. This gives continuous lubrication without any need for external oil or grease.
The graphite acts as a solid lubricant. So, it reduces friction and minimizes wear between contact surfaces, even under heavy loads and high-temperature conditions. This makes graphite-filled bronze wear plates ideal for applications where regular lubrication is difficult or not feasible.
We engineer every plate for strength, durability, and precision. As a result, they offer excellent load-bearing capacity, long service life, and consistent performance in harsh working environments.
Key Features
- Graphite-filled design for maintenance-free operation
- High load-bearing capacity
- Excellent wear resistance and durability
- Suitable for high-temperature and heavy-duty applications
- Low friction for smooth sliding performance
- Reliable operation in dry and harsh conditions
- Available in standard and customized sizes
Applications
- Heavy machinery and industrial equipment
- Steel plants and rolling mills
- Mining and construction machinery
- Die and mold applications
- Sliding guides and wear surfaces
- Material handling systems
Why Choose Our Graphite Filled Bronze Wear Plates?
We engineer every wear plate to meet international quality standards. So, you get smooth operation, reduced wear, and long service life, even in extreme working conditions.
We also apply strict quality control at every stage of production. That means you get a durable, cost-effective solution built around your industrial needs.
FAQs
Q1. What is a graphite-filled bronze wear plate?
It’s a bronze wear plate filled with graphite. The graphite provides self-lubrication and reduces friction during operation.
Q2. Do these wear plates require lubrication?
No. The graphite provides continuous lubrication, so you never need oil or grease.
Q3. Where are these wear plates used?
They’re widely used in heavy machinery, molds, sliding guides, and high-load applications.
Q4. Do you offer customized sizes?
Yes — we provide wear plates in various sizes and specifications based on your requirements.
| Technical Data | ||
|---|---|---|
| Performance Index | Data | |
| Max Load Capacity | Static load | 180N/mm² |
| Dynamic load | 90N/mm² | |
| Max Sliding Speed | Dry friction | 1.5m/s |
| Oil lubrication | 3.0m/s | |
| Max PV Value Limit | Dry friction | 2.5N/mm² · m/s |
| Oil lubrication | 4.5N/mm² · m/s | |
| Friction Coefficient | Dry friction | 0.06~0.16 |
| Oil lubrication | 0.03~0.08 | |
| Working Temperature | -40℃~+300℃ | |
| Thermal Conductivity | 65W/m · k | |
| Coefficient of Thermal Expansion | 17X10⁻⁶/K | |
