Self-Lubricating Strips
| Specification | |
|---|---|
| Material | As per Requirement |
| Inner Diameter | 3mm to 300mm |
| Outer Diameter | 3mm to 300mm |
| Length | 3mm to 300mm |
| Shape | Cylindrical |
| Lubrication | As per Requirement |
| Brand | SVB |
| Minimum Order Quantity | 1 |
| Delivery Time | Depends on Quantity |

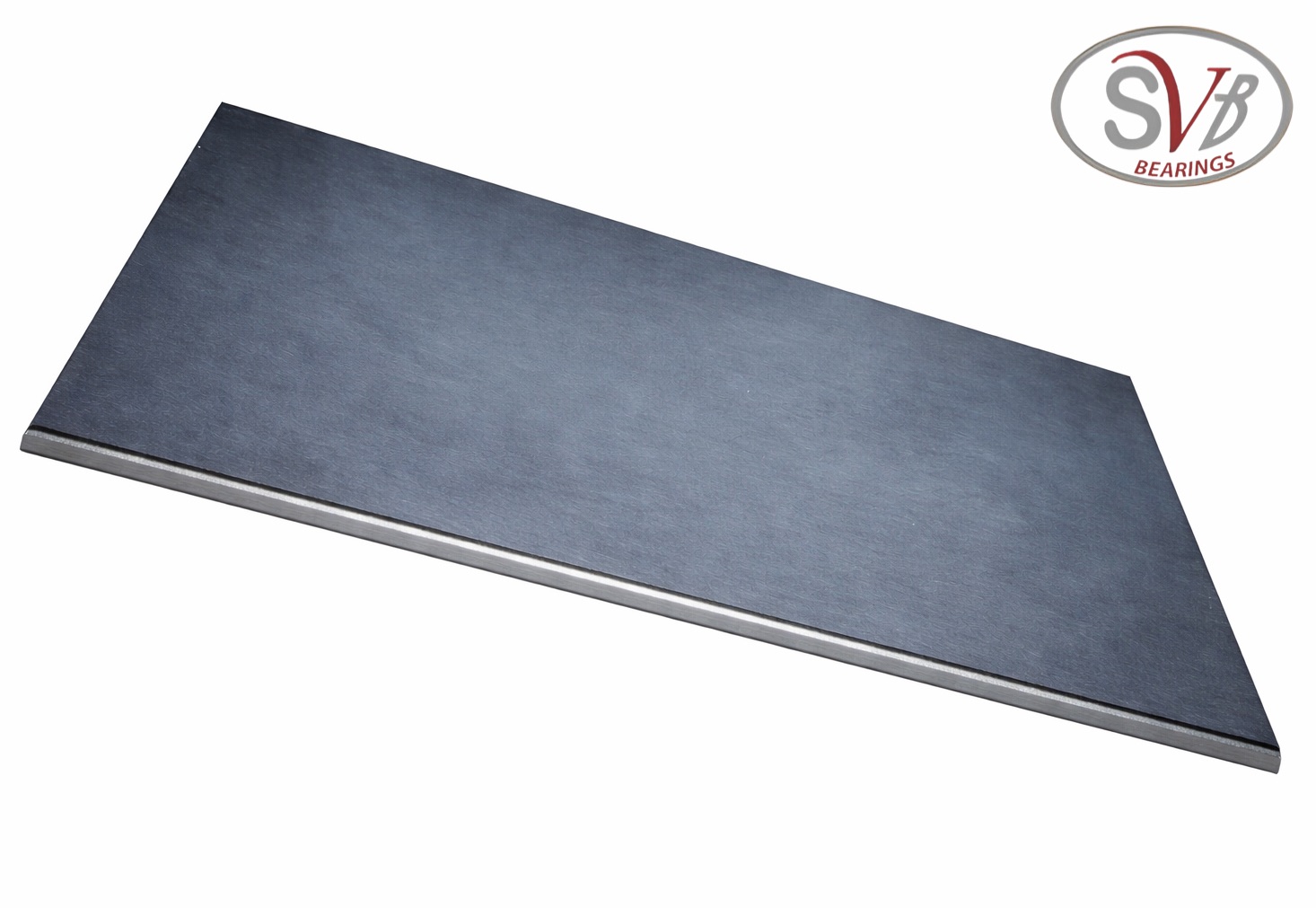

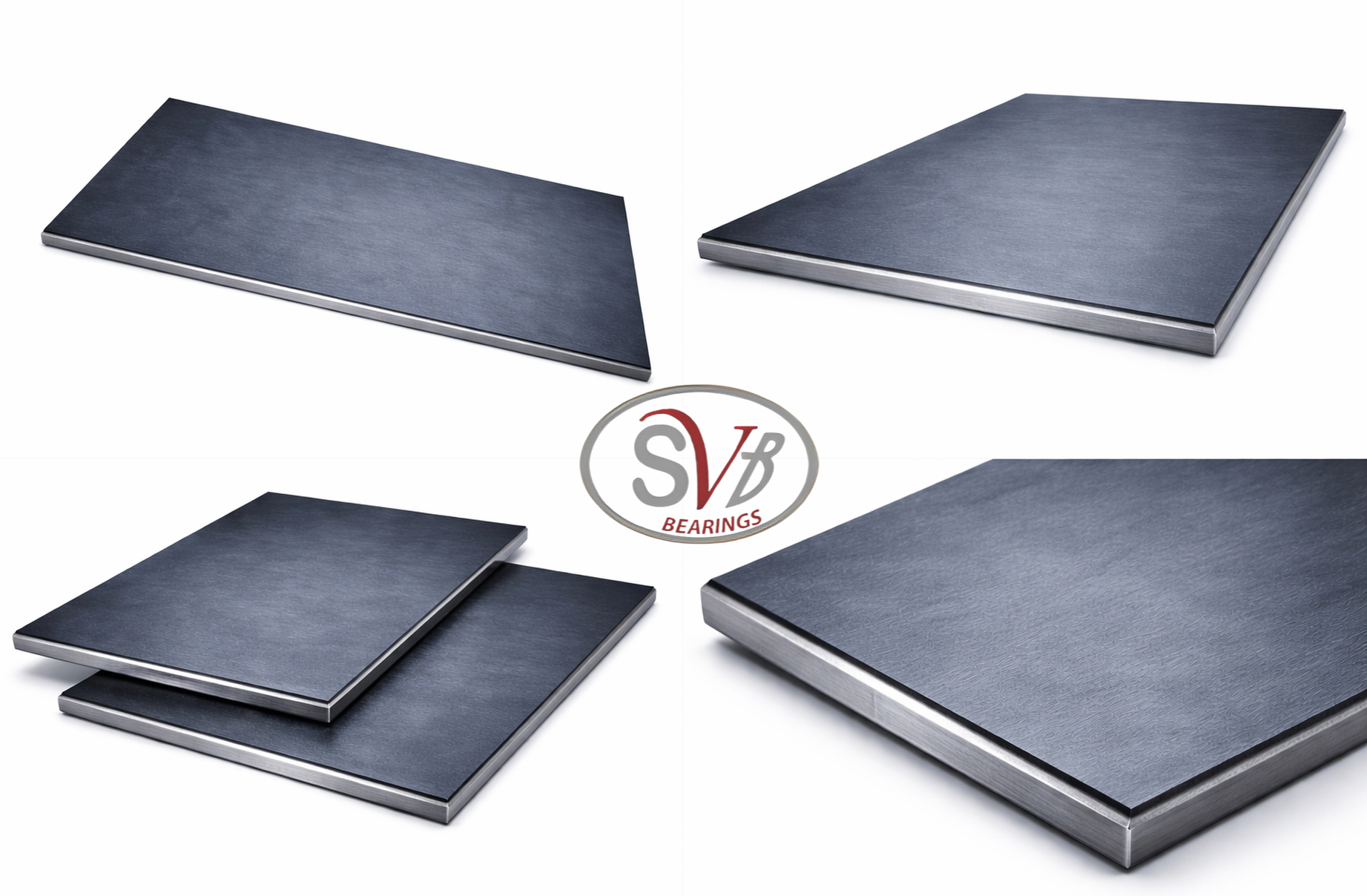

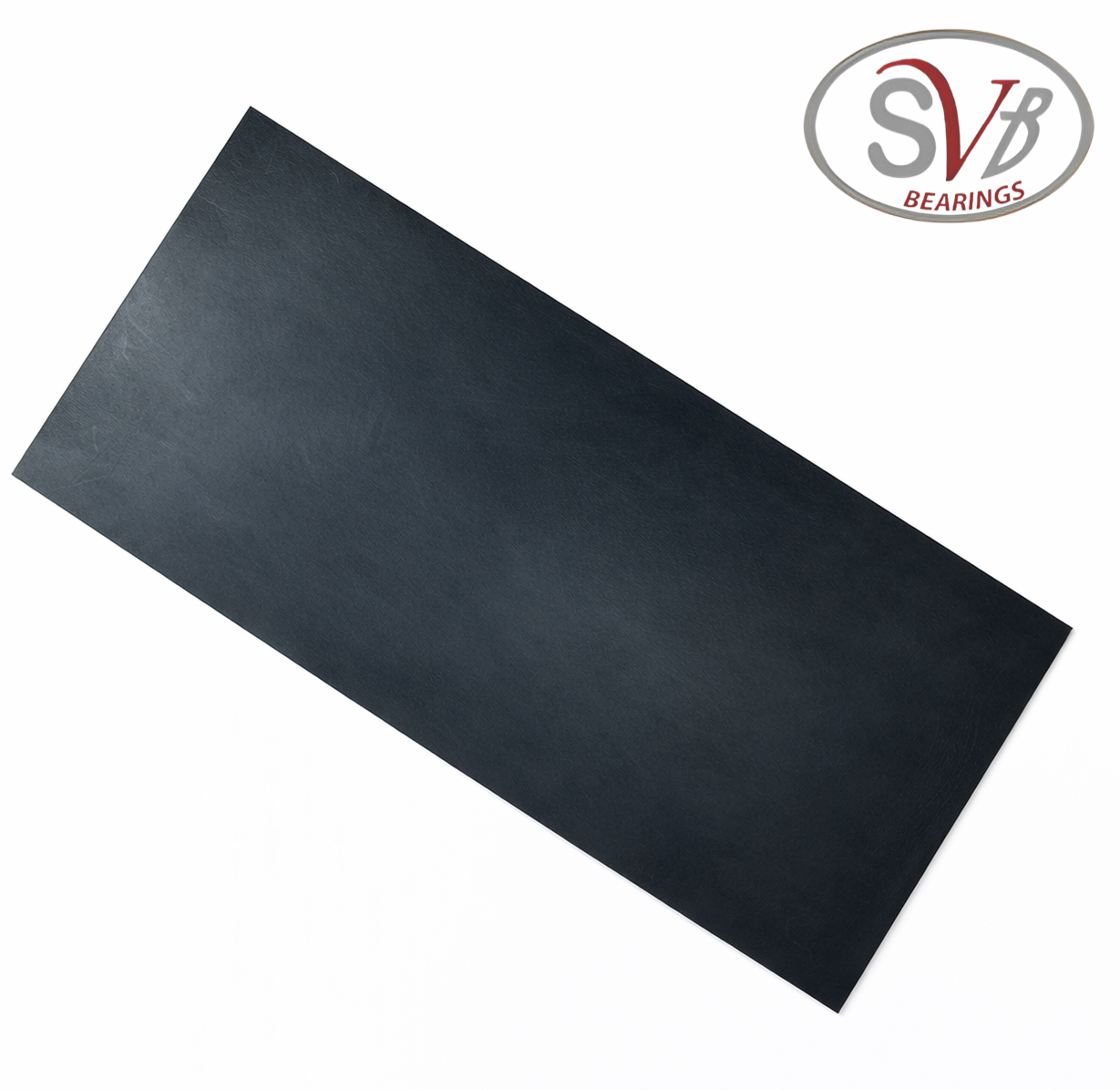

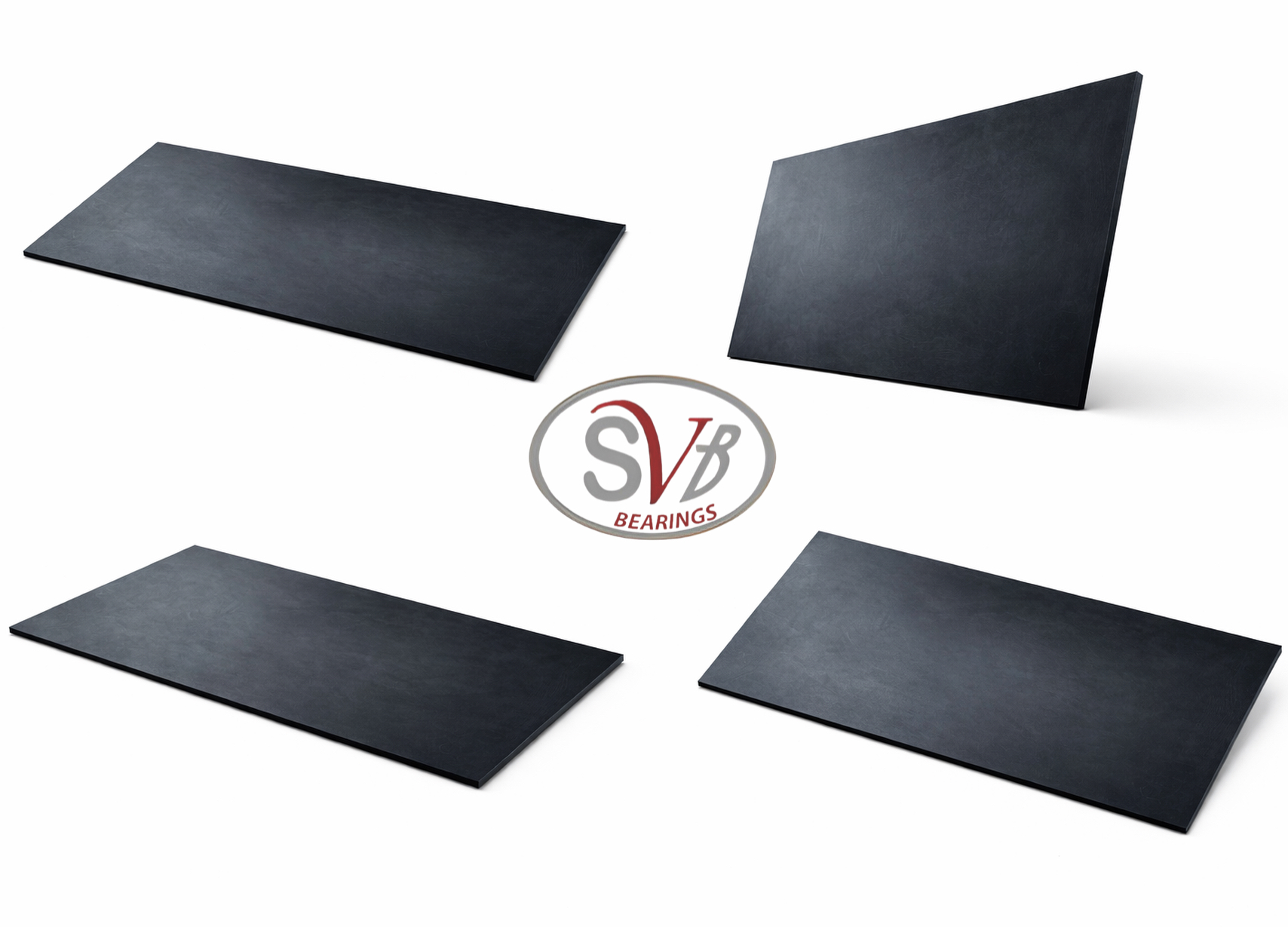

Self-Lubricating Strips
Self-lubricating strips are high-performance sliding components. They provide smooth, low-friction, maintenance-free operation across a wide range of industrial applications. We manufacture these strips using advanced self-lubricating materials. This eliminates the need for external lubrication, so you get consistent performance and reduced maintenance costs.
These strips are widely used as guide elements or sliding surfaces in machinery. They’re built for setups where continuous motion and load-bearing are required. Their low-friction surface reduces wear, minimizes noise, and improves overall system efficiency, even under demanding operating conditions.
We engineer every self-lubricating strip for durability and precision. As a result, they offer excellent load capacity, long service life, and reliable performance in both dry and harsh environments.
Key Features
- Self-lubricating surface for maintenance-free operation
- Low friction for smooth and efficient movement
- High wear resistance and durability
- Suitable for dry running conditions
- Excellent load-bearing capacity
- Reduces maintenance and downtime
- Available in standard sizes and customizable dimensions
Applications
- Industrial machinery and equipment
- Sliding guides and wear plates
- Packaging and textile machines
- Construction and heavy equipment
- Material handling systems
- General engineering applications
Why Choose Our Self-Lubricating Strips?
We engineer every strip to meet international quality standards. So, you get smooth operation, reduced wear, and long service life. We also apply strict quality control at every stage of production. That means you get reliable, cost-effective solutions built around your industrial needs.
FAQs
Q1. What are self-lubricating strips?
They are sliding components designed to reduce friction and operate without external lubrication.
Q2. Where are these strips used?
They are commonly used in machinery as guide rails, wear plates, and sliding surfaces.
Q3. What are the benefits of self-lubricating strips?
They reduce friction, eliminate lubrication needs, and increase component life.
Q4. Do you offer customized sizes?
Yes, we provide strips in various sizes and specifications as per customer requirements.
| Technical Data | ||
|---|---|---|
| Performance Index | Data | |
| Max Load Capacity | Static load | 250 N/mm2 |
| Dynamic load | 140 N/mm2 | |
| Max Sliding Speed | Dry friction | 2.5 m/s |
| Oil lubrication | 5.0 m/s | |
| Max PV Value Limit | Dry friction | 3.6N/mm² · m/s |
| Oil lubrication | 50N/mm² · m/s | |
| Friction Coefficient | Dry friction | 0.08~0.20 |
| Oil lubrication | 0.02~0.07 | |
| Working Temperature | -195℃~+280℃ | |
| Thermal Conductivity | 70W/m · k | |
| Coefficient of Thermal Expansion | 17X10⁻⁶/K | |
